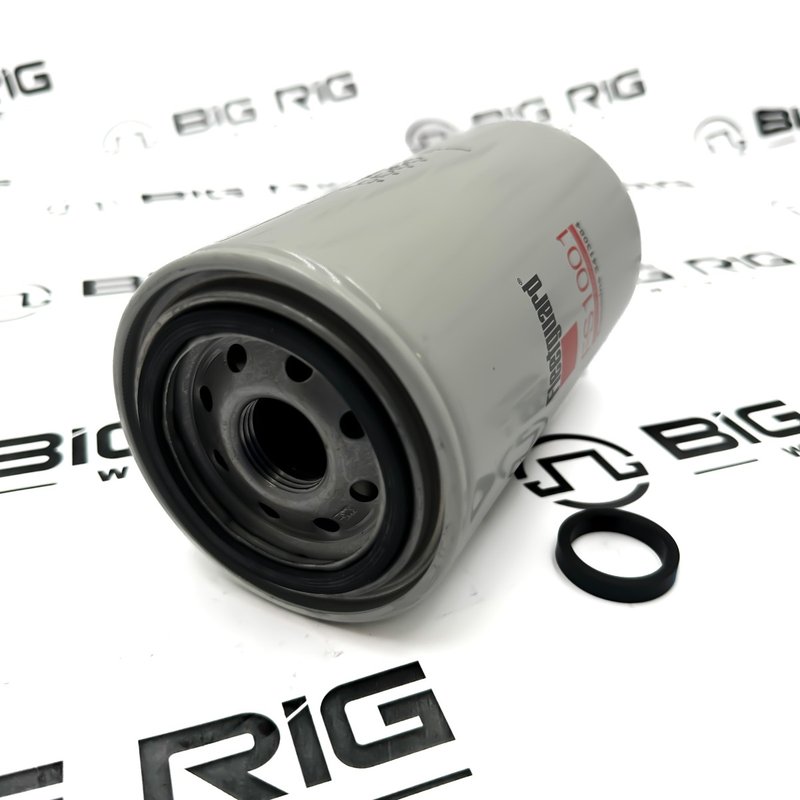

Water Separator Filter FS1001

Part Details:

• Overall Height:
  • 7.98 In / 202.69 mm
• Largest Outside Diameter:
  • 3.68 In / 93.47 mm
• Seam Outside Diameter:
  • 3.67 In / 93.22 mm
• Gasket Outside Diameter:
  • 2.83 In / 71.88 mm
• Gasket Inside Diameter:
  • 2.46 In / 62.48 mm
• Thread Size: 1-14 UNS-2B
• Standpipe: Yes
• Emulsified Water Separation: 95% / 95%
• Free Water Separation: 95% / 95%
• Efficiency, TWA by SAE J 1985: 98.7% / 98.7%
• Micron Rating by SAE J 1985: 10 Micron / 10 Micron
• Primary Applications: Cummins - 3413084
