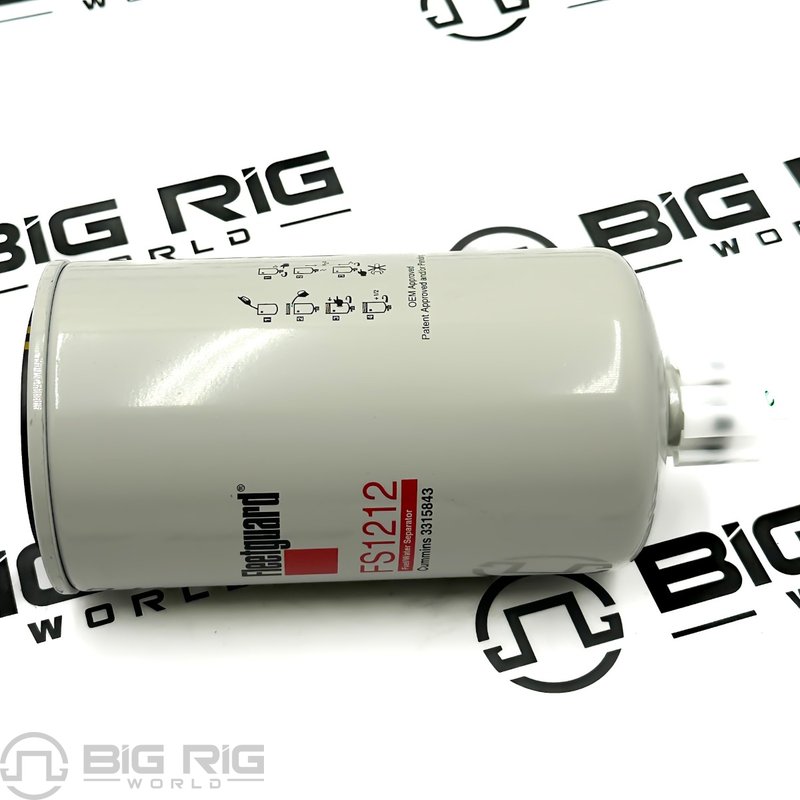

Fuel/Water Separator Spin On FS1212

Part Details:

• Overall Height:
  • 7.92-inches / 201.17 mm
• Largest Outside Diameter:
  • 3.67-inches / 93.22 mm
• Seam Outside Diameter:
  • 3.69-inches / 93.73 mm
• Gasket Outside Diameter:
  • 2.83-inches / 71.88 mm
• Gasket Inside Diameter:
  • 2.46-inches / 62.48 mm
• Thread Size: 1-14 UNS-2B
• Standpipe: No
• Emulsified Water Separation: 90% (90%)
• Free Water Separation: 90% (90%)
• Efficiency, TWA by SAE J 1985: 96% (96%)
• Micron Rating by SAE J 1985: 20 micron (20 micron)
• Primary Applications:
• CUMMINS 3308638
• INGERSOLL-RAND 57138554
• VOLVO 36849
• Product Comments: Replaces FF104, FF105, FF105C, FF105D, and FF213
  • Optional upgrade is FS1242B
  • Upgrade Of: FF105
  • Is A Longer Version Of: FS1282
  • For Upgrade, Use: FS1000
  • FS1015B Stratapore Version
• Filter Used With:
  • 142784S Fuel Filter Head
  • 212013S Dual Fuel Filter Head
  • 3930618S Fuel Filter Head, Steel Insert
• Additional Information: 255622 Gasket
