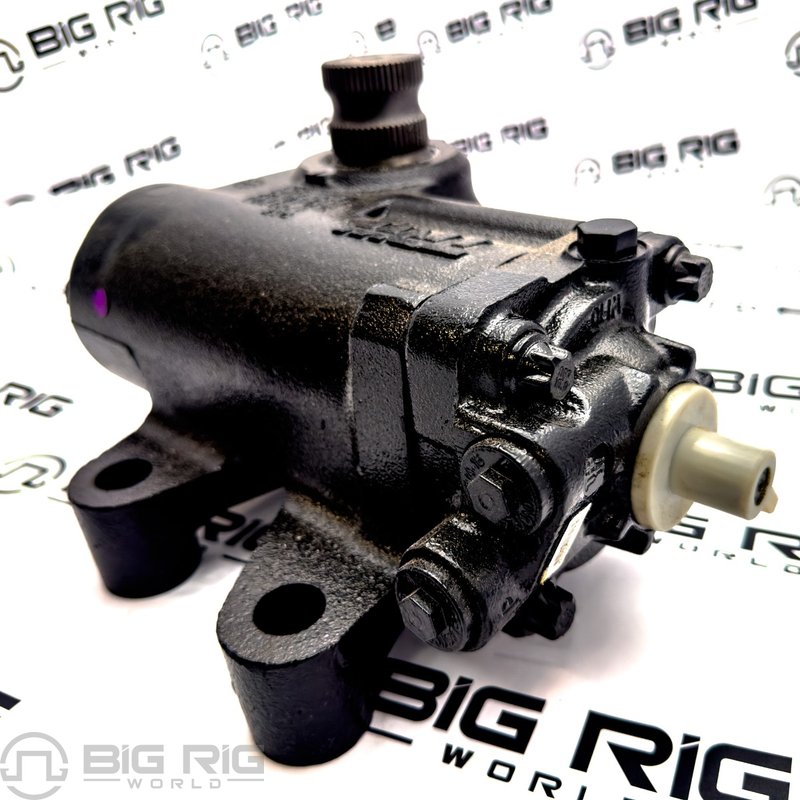

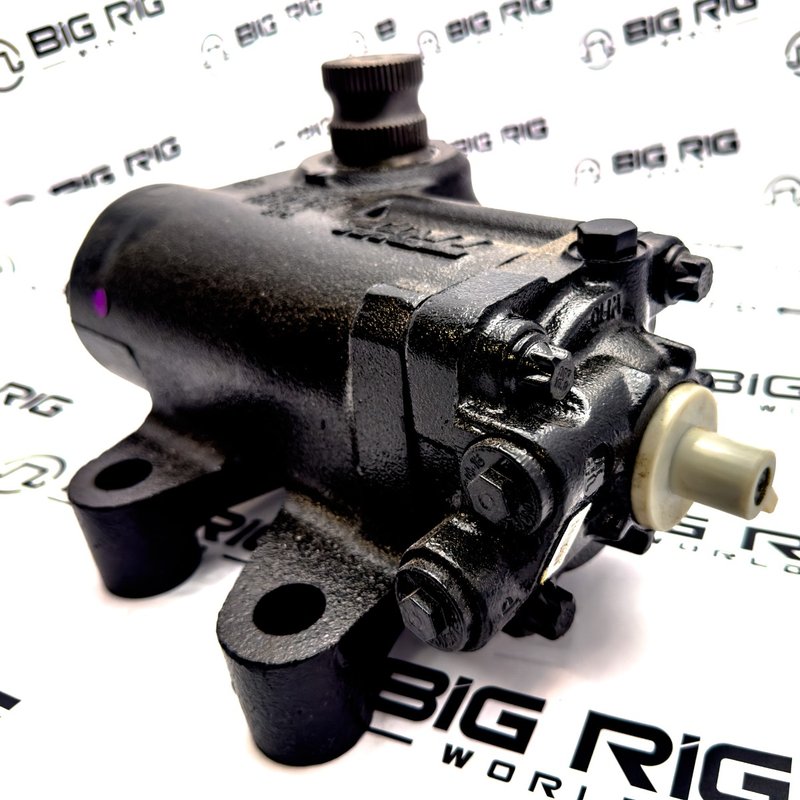

Steering Gear Assembly - THP60-Set Back Axle 4 Port 14-19706-000

This steering gear assembly is designed for heavy-duty applications with a set-back axle configuration. It features a 4-port design and supports both clockwise and counter-clockwise rotation. The unit provides precise steering control and consistent response under load conditions. Compatible with systems requiring a minimum pump flow rate of 3 gallons per minute.

• Configuration: Set-back axle, 4-port
• Rotation Direction: Clockwise/Counter-clockwise
• Gear Ratio: 18.2:1
• Minimum Pump Flow Rate: 3 gallons per minute
• Pump Flow Rate: 3.60 gallons per minute
• Working Pressure: 2682 psi
• Maximum Torque: 4871 Nm
• Color: Black
• Finish: Painted
• Length: 14.23 inches
• Width: 8.08 inches
