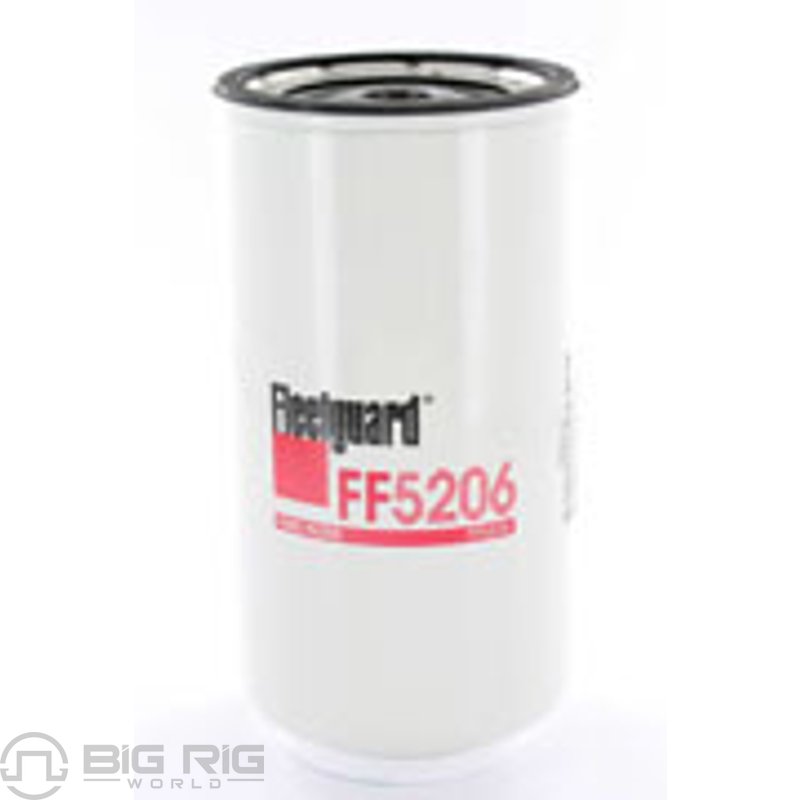

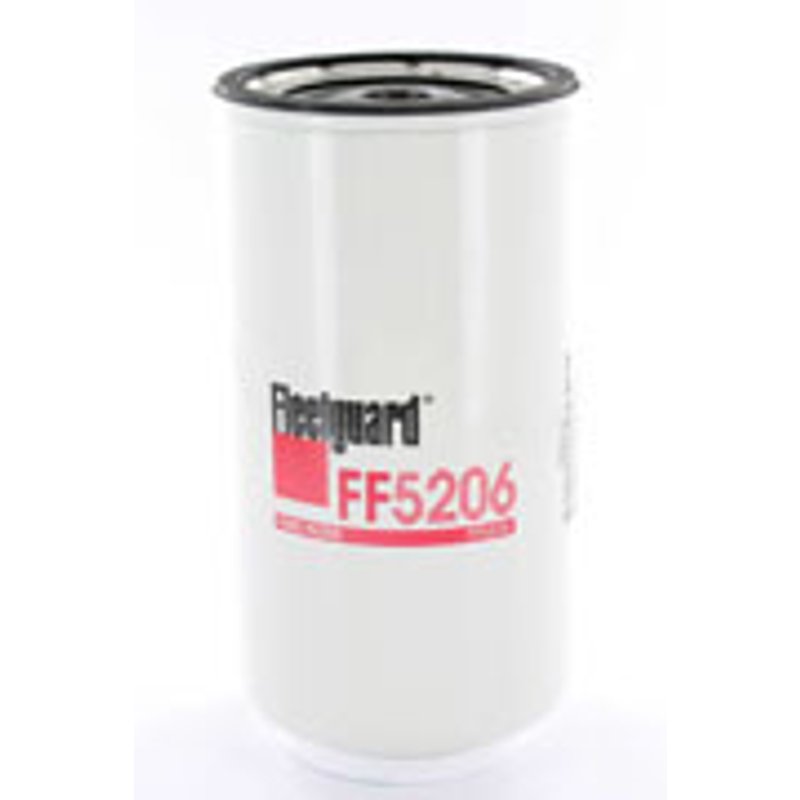

Spin-On Fuel Filter FF5206

Part Details:

• Overall Height:
  • 6.912-inches / 175.57 mm
• Largest Outside Diameter:
  • 3.667-inches / 93.13 mm
• Seam Outside Diameter:
  • 3.686-inches / 93.62 mm
• Gasket Outside Diameter:
  • 3.487-inches / 88.57 mm
• Gasket Inside Diameter:
  • 3.115-inches / 79.12 mm
• Thread Size: 13/16-12 UNS-2B
• Standpipe: No
• Efficiency, TWA By SAE J 1858: 99 % (99 %)
• Micron Rating By SAE J 1858: 20 micron (20 micron)
• Primary Applications: AC - TP916D
• GMC - 25014342
• Uses Service Part: 3833200S - Head for conversion to spin-on used on Detroit Diesel Engines
• For Upgrade, Use: FF5333
