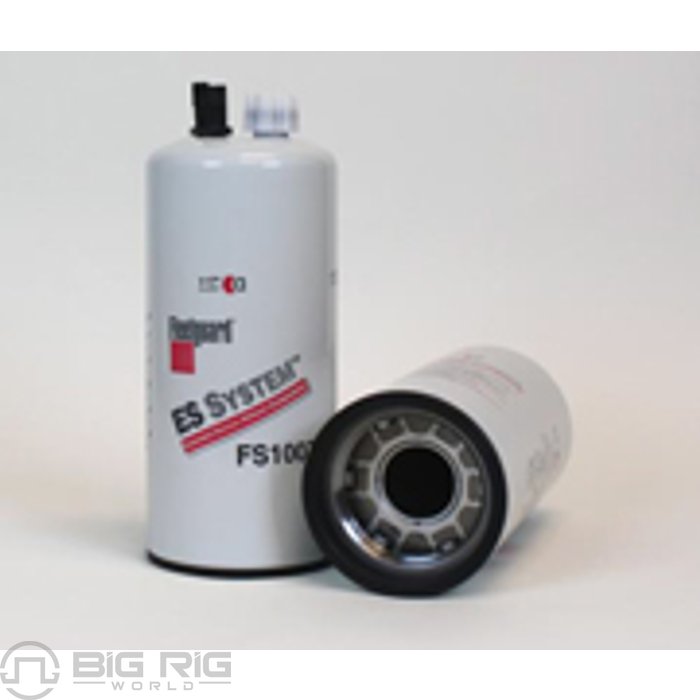

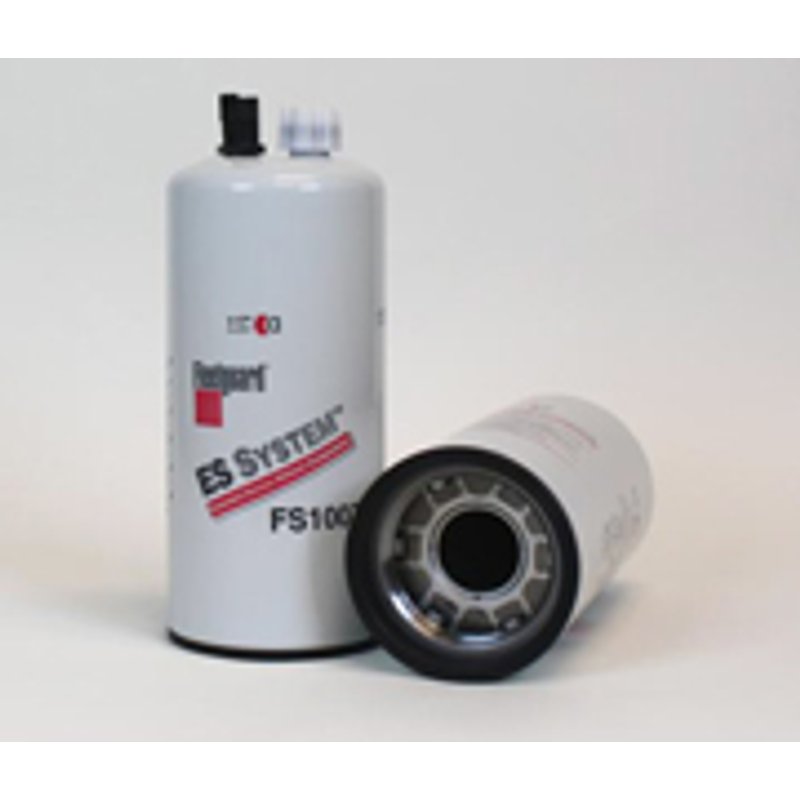

Fuel Water Separator Filter FS1007

Part Details:

• Overall Height:
  • 11.574-inches / 293.98 mm
• Largest Outside Diameter:
  • 4.65-inches / 118.11 mm
• Seam Outside Diameter:
  • 4.646-inches / 118.01 mm
• Gasket Outside Diameter:
  • 4.68-inches / 118.87 mm
• Gasket Inside Diameter:
  • 101.6 mm (4 in)
• Thread Size: M85 X 2-7H INT
• Standpipe: No
• Emulsified Water Separation: 95 % (95 %)
• Free Water Separation: 95 % (95 %)
• Efficiency, TWA By SAE J 1985: 98.7 % (98.7 %)
• Micron Rating By SAE J 1985: 10 micron (10 micron)
• Primary Applications: CUMMINS - 3101871
• Product Comments: Maximum Engine Protection Suction Side Fuel with Combination WIF Sensor and drain valve. Stratapore Media
• Uses Service Part: 3911940S - WIF Sensor
• Upgrade Of: FS1040
• Additional Information: 3894794 - Gasket
