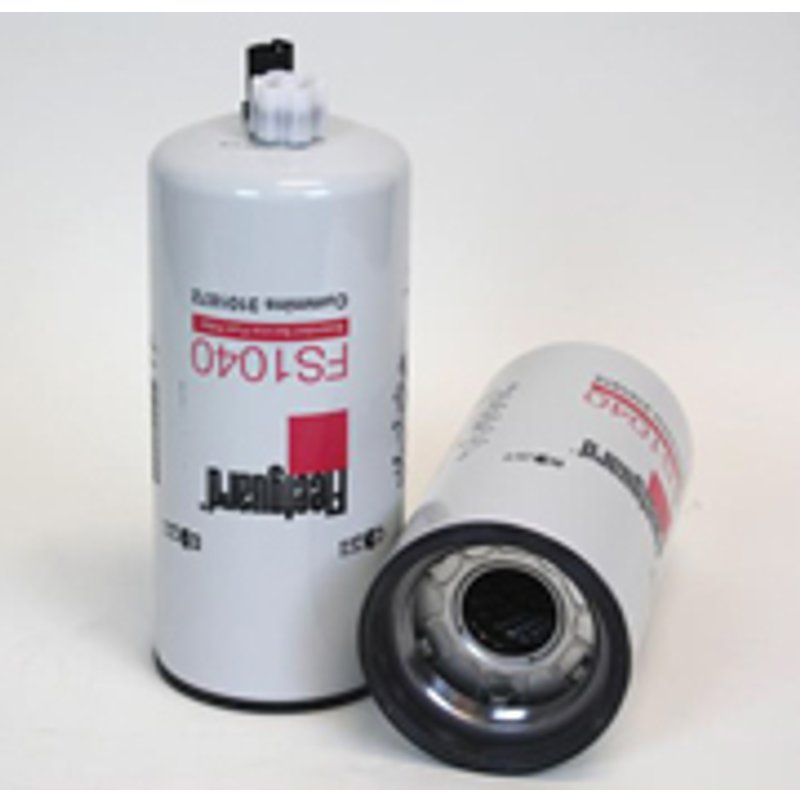

Water Separator Filter FS1040

Part Details:

• Overall Height:
  • 11.574 In / 293.98 mm
• Largest Outside Diameter:
  • 4.65 In / 118.11 mm
• Seam Outside Diameter:
  • 4.646 In / 118.01 mm
• Gasket Outside Diameter:
  • 4.68 In / 118.87 mm
• Gasket Inside Diameter:
  • 4 In / 101.6 mm
• Thread Size: M85 X 2-7H INT
• Standpipe: No
• Emulsified Water Separation: 95% / 95%
• Free Water Separation: 95% / 95%
• Efficiency, Twa By Sae J 1985: 98.7% / 98.7%
• Micron Rating By Sae J 1985: 25 Micron / 25 Micron
• Primary Applications: Cummins - 3101872
• Product Comments: Heavy Duty Protection With Optimum Life Suction Side Fuel With Combination WIF Sensor And Drain Valve. Stratapore Media
• Uses Service Part: 3911940s
• WIF Sensor: For Upgrade, Use FS1007
