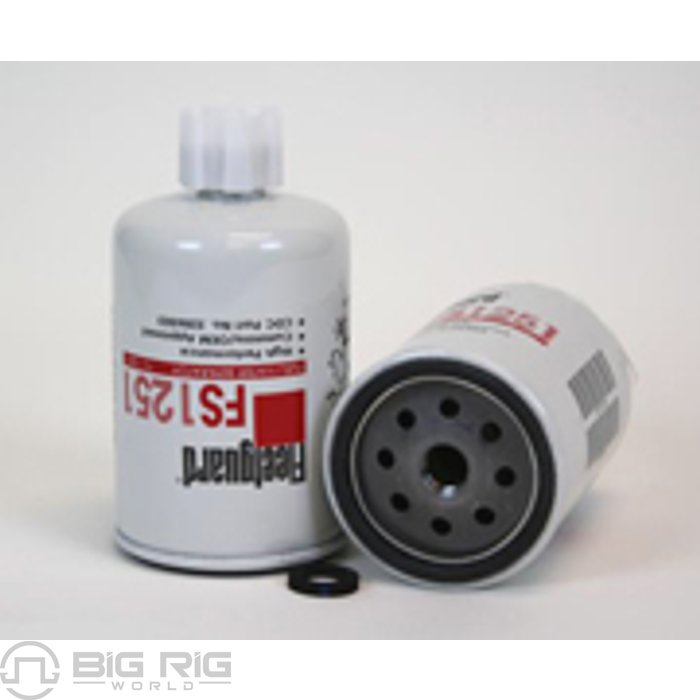

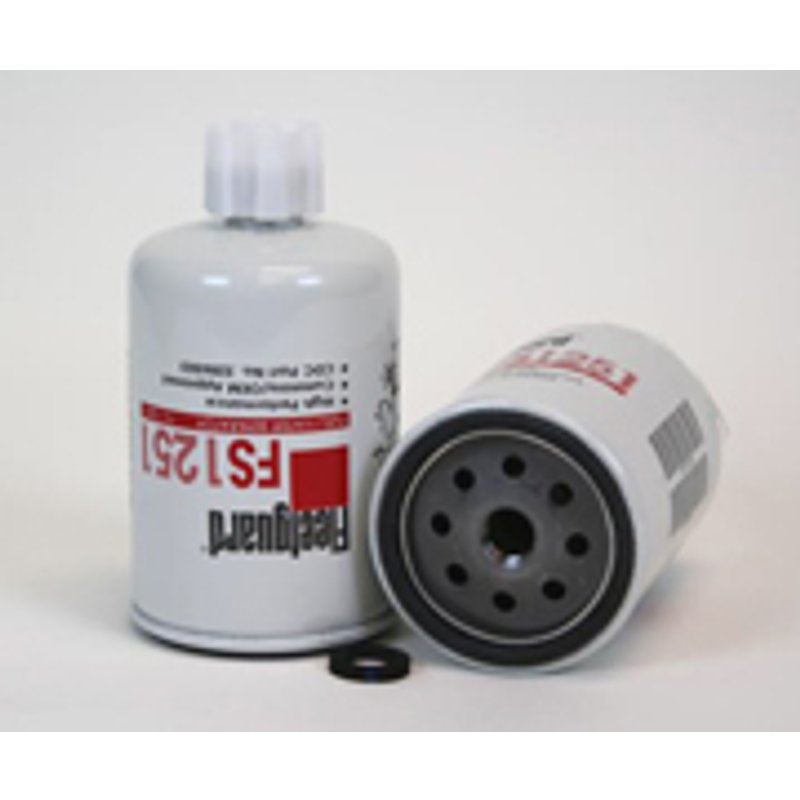

Water Separator Fliter FS1251

Part Details:

• Overall Height:
  • 5.626-inches / 142.9 mm
• Largest Outside Diameter:
  • 3.02-inches / 76.71 mm
• Seam Outside Diameter:
  • 3.01-inches / 76.45 mm
• Gasket Outside Diameter:
  • 2.72-inches / 69.09 mm
• Gasket Inside Diameter:
  • 2.46-inches / 62.48 mm
• Thread Size: M16 X 1.5-6H INT
• Standpipe: Yes
• Emulsified Water Separation: 90% (90%)
• Free Water Separation: 90% (90%)
• Efficiency, TWA by SAE J 1985: 96% (96%)
• Micron Rating by SAE J 1985: 20 micron (20 micron)
• Primary Applications:
  • Cummins 3286503
  • Cummins 3843760
• Is a Longer Version Of: FS1235
• Filter Used With: 3311505S Remote Mount Head
• Additional Information: 3311919 Gasket
