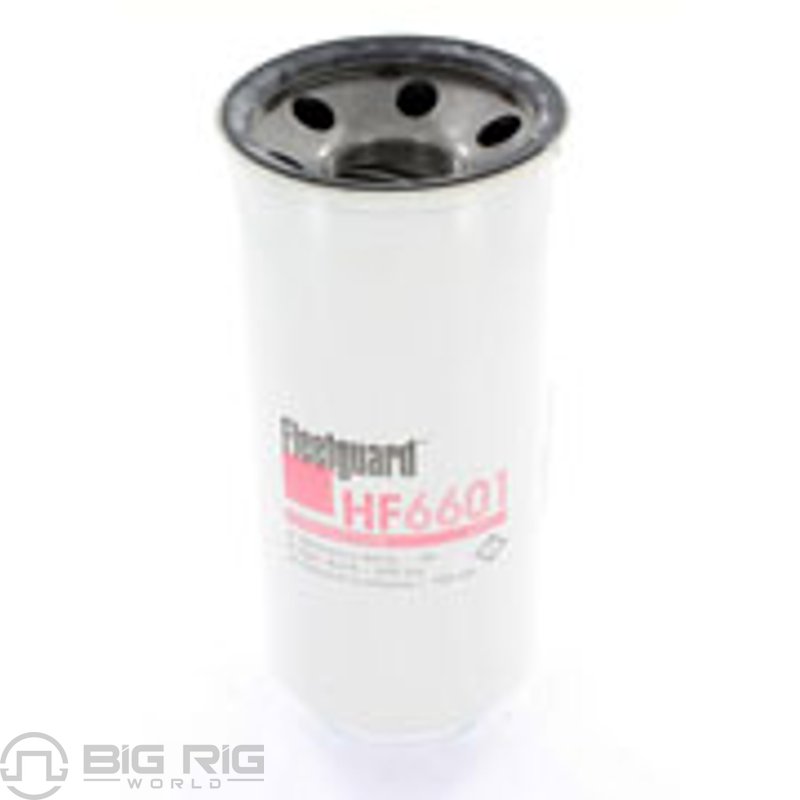

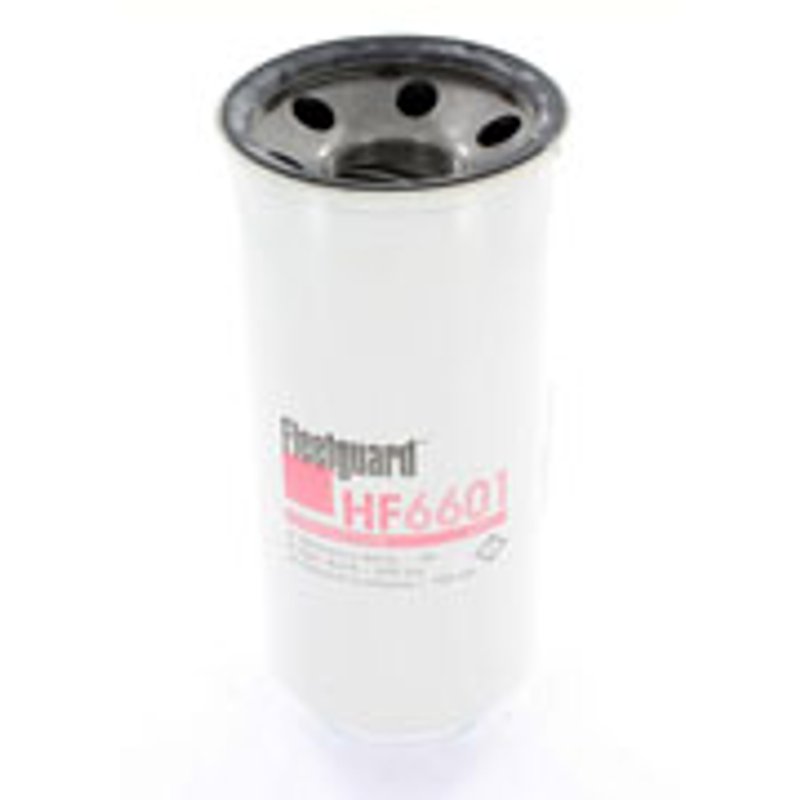

Filter Hydraulic HF6601

Part Details:

• Overall Height:
  • 8.03-inches / 203.96 mm
• Largest Outside Diameter:
  • 3.68-inches / 93.47 mm
• Seam Outside Diameter:
  • 3.74-inches / 95 mm
• Gasket Outside Diameter:
  • 3.44-inches / 87.38 mm
• Gasket Inside Diameter:
  • 2.96-inches / 75.18 mm
• Thread Size: 1 1/2-16 UN-2B
• Standpipe: No
• ADBV: Null
• BPV Setting: 0 kPa (0 PSI)
• TWA MICRON @ BETA=2: 1 micron (1 micron)
• TWA MICRON @ BETA=20: 8 micron (8 micron)
• TWA MICRON @ BETA=200: 0 micron (0 micron)
• TWA MICRON @ BETA=75: 12 micron (12 micron)
• Primary Applications:
  • CASE - 561980C1
  • FUNK - 4003058
• Additional Information: 333269 - Gasket
