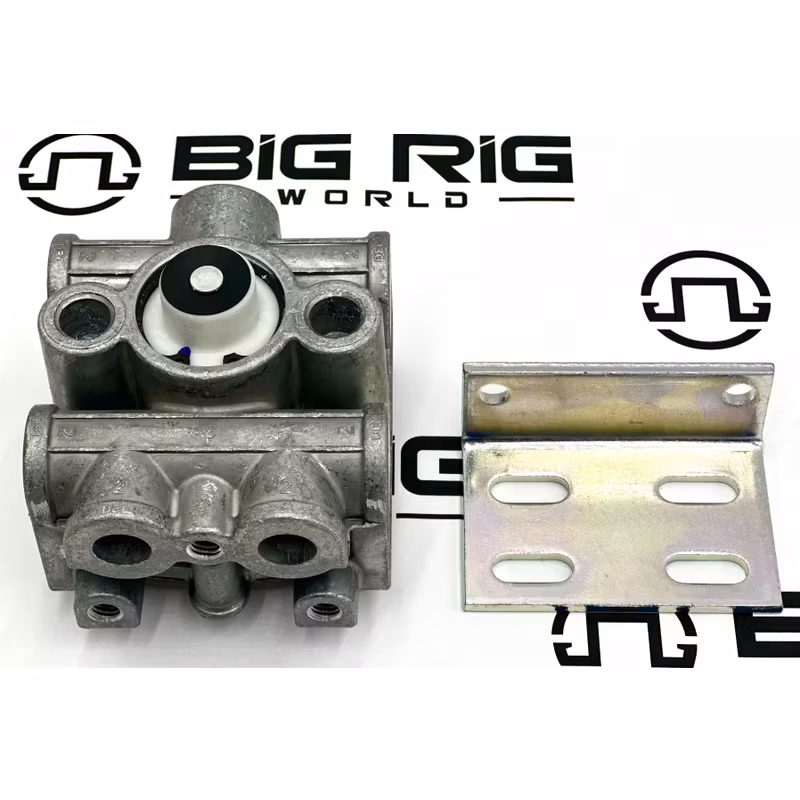

R-12 Relay Valve 803115

Part Details:

• Mounting: .96-inch x .40-inch Slot (4x)
• Mounting Bracket Location: Loose in Box
• Body Configuration: 1 SUP / 8 DEL (6H + 2V)
• Supply Port 1: 1/2-14 NPT
• Control / Secondary Service Port: 1/4-18 NPT
• Delivery Port 1: 1/2-14 NPT
• Delivery Port 2: 1/2-14 NPT
• Delivery Port 3: 1/2-14 NPT
• Delivery Port 4: 1/2-14 NPT
• Delivery Port 5: Cored Closed
• Delivery Port 6: Cored Closed
• Delivery Port 7: Cored Closed
• Delivery Port 8: Cored Closed
• Exhaust Port: Dust Shield
• Crack Pressure: 5.5 PSI
• TMC Washer: RV055
• Maximum Operating Temperature: 200 °F (93 °C)
• Minimum Operating Temperature: -40 °F (-40 °C)
