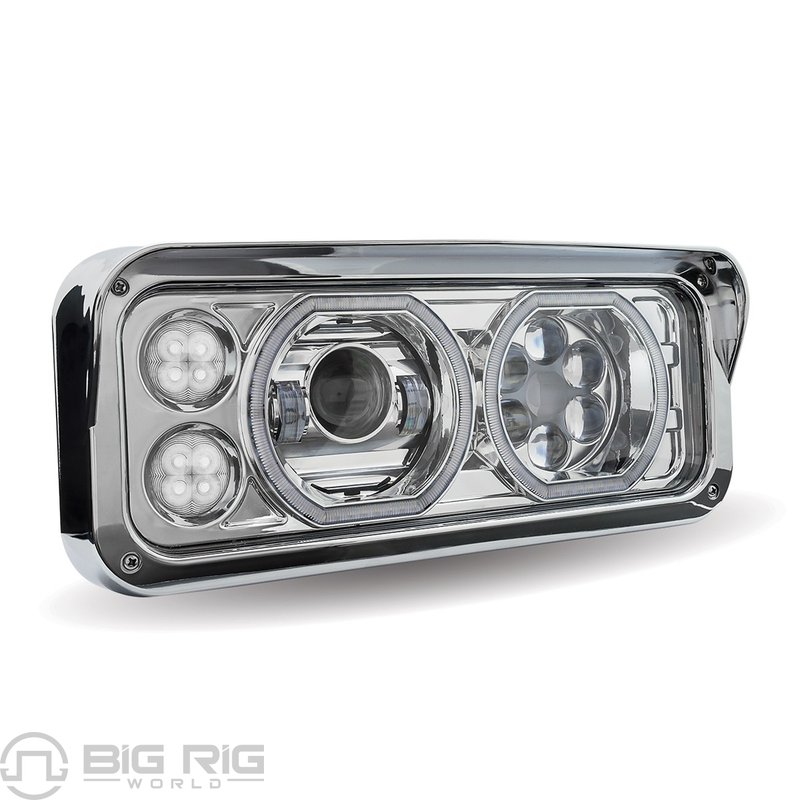

Universal LED Projector Headlight Assembly (Chrome | Passenger Side) TLED-H121

Universal LED Projector Headlight Assembly (Chrome | Passenger Side)

- Big Rig World carries Genuine OEM and Aftermarket parts to repair your vehicle at the lowest prices.

FEATURES:

• DOT Compliant
• Meets FMVSS-108 & CMVSS-108 Standards
• LED Projector Technology for Greater Visibility
• Patented Design
• Integrated Traditional Visor & LED Halo Rings
• Replaces OEM 4In. x 6In. Headlight Configuration
• Includes Housing Bucket for Kenworth, Freightliner & Western Star Models
• Sold Individually
• 3 Year Warranty

DESIGNED TO FIT:

• Freightliner ClassicAll Years
• International 4800 SeriesAll Years
• Kenworth T600All Years
• Kenworth T800All Years
• Kenworth W900BAll Years
• Kenworth W900LAll Years
• Peterbilt 357All Years
• Peterbilt 365All Years
• Peterbilt 378All Years
• Peterbilt 379All Years
• Western Star 4800 SeriesAll Years
• Western Star 4900 SeriesAll Years
• Western Star 6900 Series

• Sold Individually
• Designed to Fit Passenger Side
• Compliance DOT Compliant
• Bulb Type LED Projector
• Function High and/or Low Beam with Daytime Running Halo Rings
• Function 2 Amber LED Marker
• Function 2 Amperage 0.44 Amps @ 12 Volts
• Color Chrome
• Beam Combination High & Low Beam
• LED Power Low: 42 Watts | High: 30 Watts
• Raw Lumens Low: 2400 Lumens | High: 1400 Lumens
• Effective Lumens Low: 520 Lumens | High: 710 Lumens
• High Beam Diodes 7 Diodes
• Low Beam Diodes 3 Diodes
• Operating Voltage (V) 9-24 Volts (DRL Compatible)
• High Beam (Volts / Amps) 2.1 Amps @ 12 Volts
• Low Beam (Volts / Amps) 2.25 Amps @ 12 Volts
• Daytime Running (Watts / Amps) 0.16 Amps
• Lens Material Polycarbonate with Waterborne NLS Curable Coating for UV Protection
• Housing Material Polypropylene
• Waterproof Rating IP66 Rating
• What's Included Housing Bucket, Integrated Visor & Hardware
• Dimension (L x W x H) 16In. x 6.9In. x 6.9In.
• Package Dimensions (W x L x H) 21.5In. x 10.25In. x 11.4In.
• Inner Box QTY 1 PC
• Warranty 3 Year Warranty
