Sensor - Speed

In stock
Part# 5221643 OLD# 2735041

Speed Sensor

$180.11
Non-returnable part

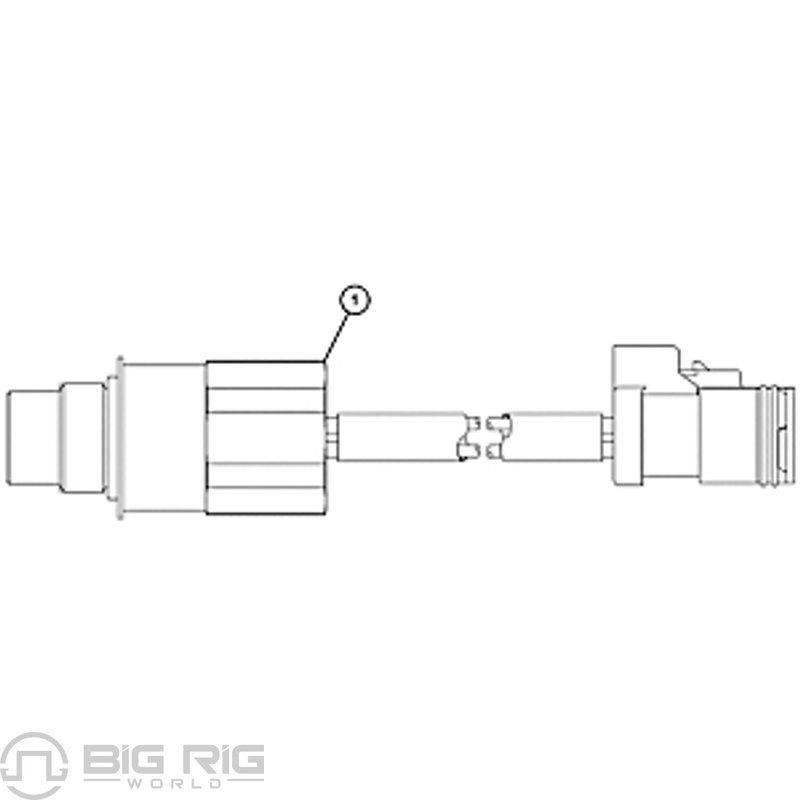

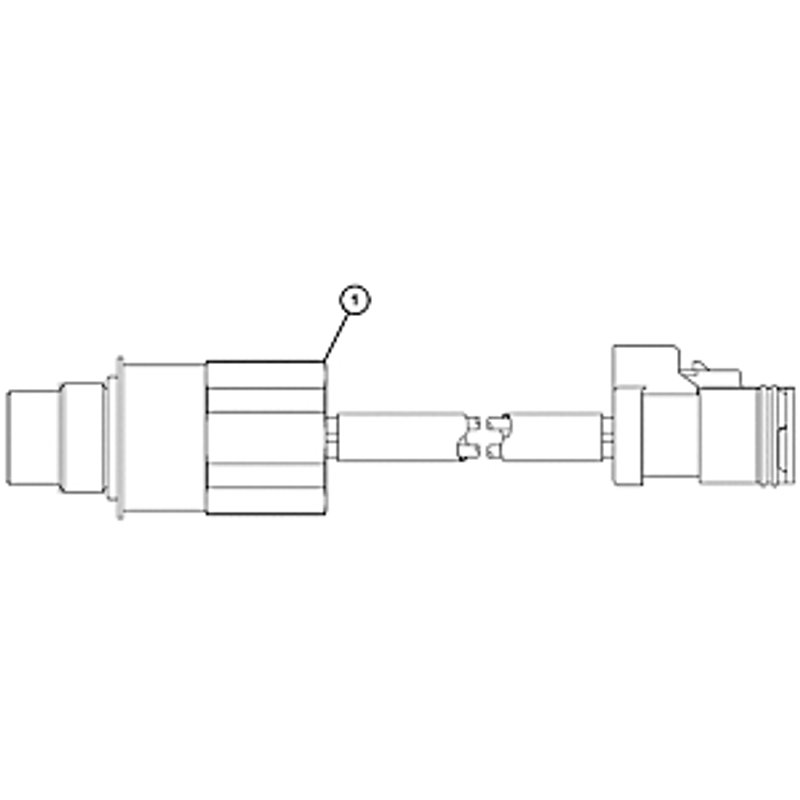

Cat® Active Single Hall Effect Speed Sensor

Description:
Cat single Hall effect sensors have Hall elements. Active Hall effect sensors require an external electrical power supply. Waveform is function of the target gear square wave output. Frequency is proportional to surface speed of the target gear as it passes the sensor, but the voltage level is not (unlike passive speed sensors). Hall effect sensors can detect down to zero speed (unlike passive speed sensors).

Attributes:
• One Hall element
• One output, 3 wires (power, return, signal)
• Available in both fixed nose length and adjustable depth housings

Applications:
• Used where zero speed or near-zero speed detection is required.
• Transmission output speed
• Speed
• Timing

Specifications:
  • External Thread Size: 3/4 - 16
  • Overall Length (in): 2.20
  • Overall Length (mm): 55.8
  • Thread Length (in): 0.78
  • Thread Length (mm): 19.9
  • Wire Length (in): 13.19
  • Wire Length (mm): 335
 WARNING: This product can expose you to chemicals including Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
More Information
Current Part# 5221643
Old Part No.: 2735041
Manufacturer CAT
Stock In stock
Weight 0.2000
Hot Deals No
Fits CAT
Type OEM
Warranty Standard Manufactures
Compatible Models

EARTHMOVING COMPACTOR
836

WHEEL-TYPE LOADER
988B 992C 992G 992D 994F 990 994H 988F 988F II 990 II 994D

ENGINE - GENERATOR SET
3516C 3516B 3508B PM3512 3512B 3512C PM3516 PM3508 PP3516 3508 3512 3516

ENGINE - TRUCK
C-10 3406E

PETROLEUM PRODUCTS
3512C 3508C 3512B TH48-E80 3516C CX48-P2300 TH48-E70 3508B

OFF-HIGHWAY TRUCK
785C 777D 785 793C 775D 775B 785D 769D 797B 771D 773D 777B 773B 772B 776D 773E 775E 785B 784C 793D 789B 777 789 797 777C 789C

ENGINE - INDUSTRIAL
3512B 3512C 3516C G3516 G3512B 3516B G3512 3508B G3516B G3508 SPF343C G3508J 3508C G3508B G3512J G3516J

COLD PLANER
PM-565

MOTOR GRADER
24H

PAVING COMPACTOR
CB-54B CD-54B CD-44B CB10 CB-44B CD10

WHEEL DOZER
844 854G 834B

EXCAVATOR
345B 5130B 5230B 5110B

PIPELAYER
572R II

MARINE PRODUCTS
3512B 3516B 3516 3508 3512 3508B 3412E C32

WHEEL TRACTOR-SCRAPER
657E 637E 637G 651E 631E 637D 633D 631G 631D 639D 633E II

TRACK-TYPE TRACTOR
D7R II D11R D10N D10R D11N D9L D9R D9N D8L

EXPANDED MINING PRODUCTS
MD6540C

OEM SOLUTIONS
CAT WDS

Note: Cat® parts shipped within the United States only.
