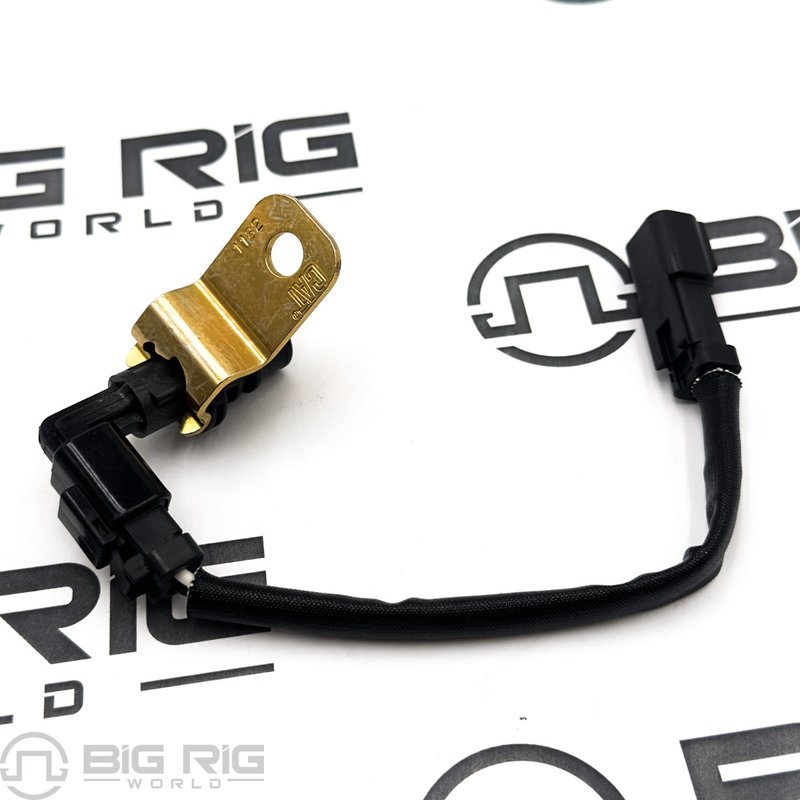

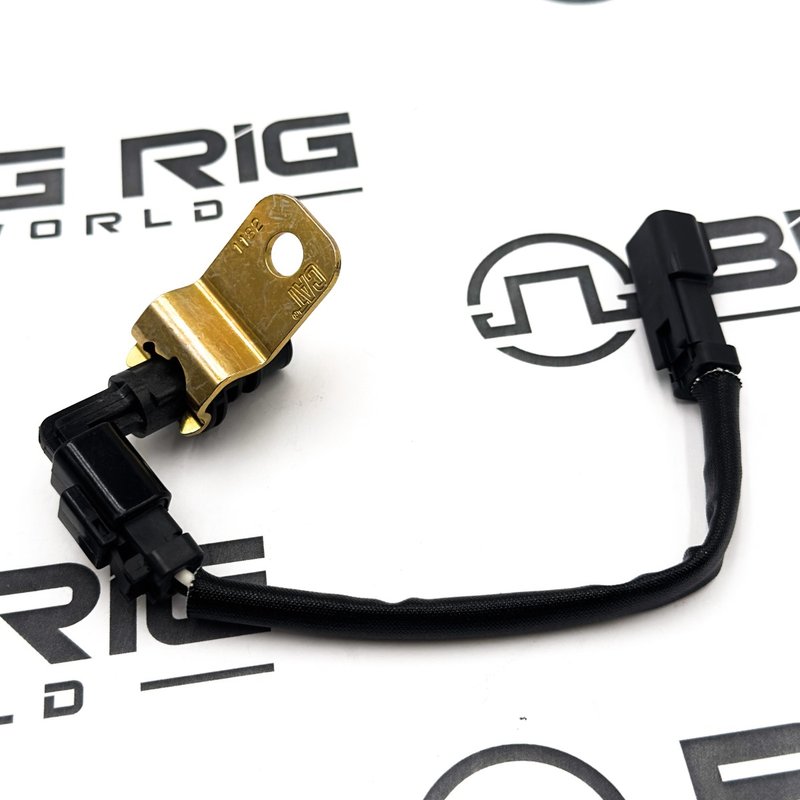

Cat® Passive High-Output Over-Mold Speed Sensor
Cat passive speed sensors do not require any external electrical power supply. The output signal is an alternating current and the waveform function of the actuator is generally sinusoidal in nature. Voltage and frequency are both proportional to the surface speed of the actuator as it passes the sensor’s pole piece. Injection molded nylon is applied directly over the magnet and coil.
• High output
• Bolt-n-go style mounting bracket
• Lowest cost
• High position accuracy, NOT recommended for use in applications <50 rpm
• Lower output voltage
• Typical applications include engine cam and transmission output
- Bore Diameter (in): 0.73
- Connector Pin Count: 2-pin
- Insert Length (in): 0.89
- Overall Length (in): 2.57
- Sensor Type: Speed
- Wire Length (in): 5.91
Note: Cat® parts shipped within the United States only.
