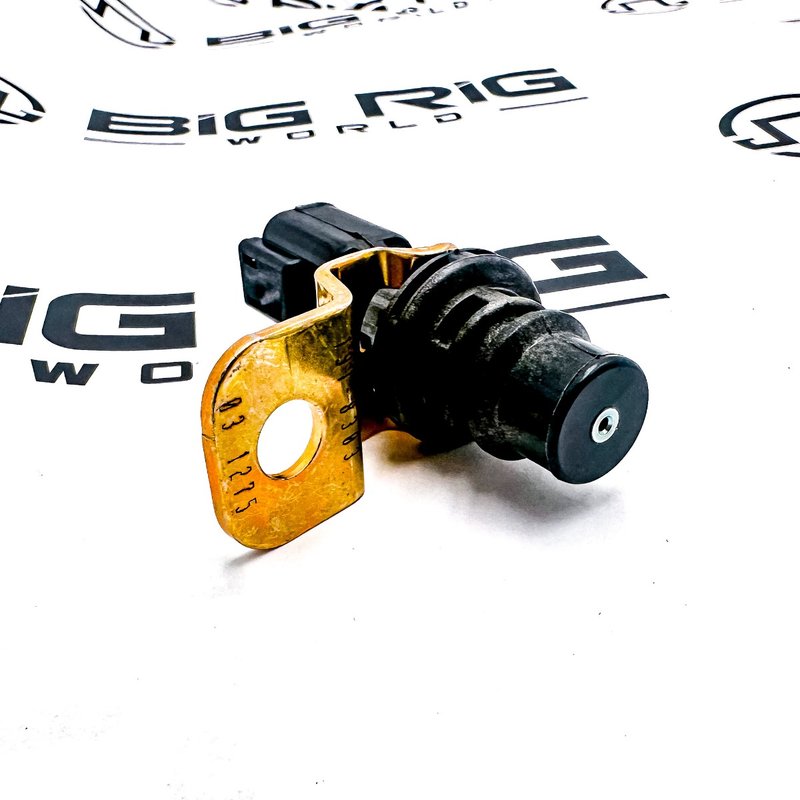

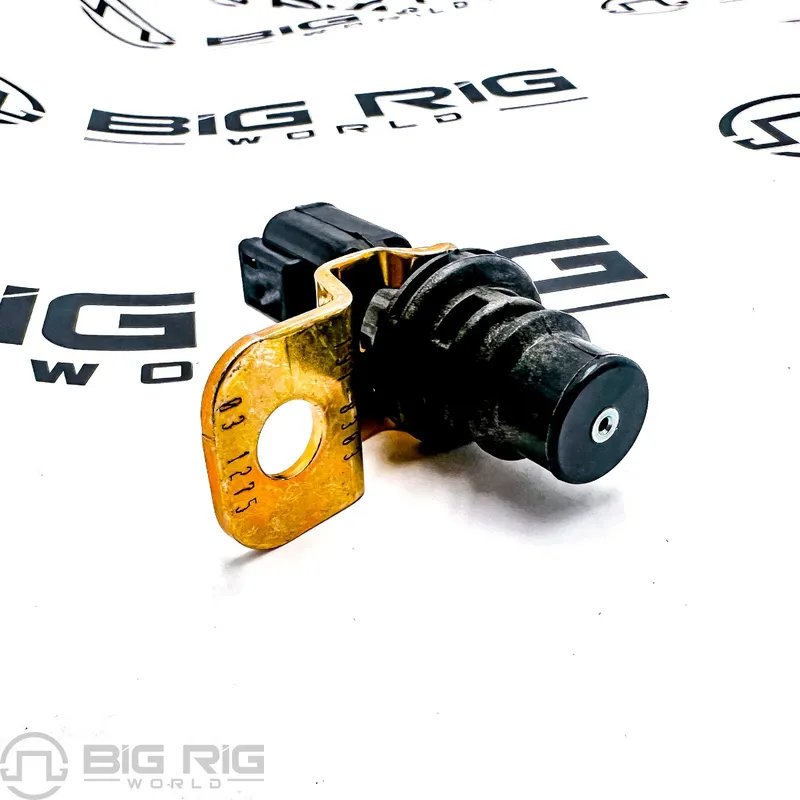

Cat® Passive Low-Output Over-Mold Speed Sensor
Description:
Cat passive speed sensors do not require any external electrical power supply. The output signal is an alternating current and the waveform function of the actuator is generally sinusoidal in nature. Voltage and frequency are both proportional to the surface speed of the actuator as it passes the sensor’s pole piece. Injection molded nylon is applied directly over the magnet and coil.
Attributes:
• Low-output
• Bolt-n-go style mounting bracket
• Lowest cost
Applications
• High position accuracy, NOT recommended for use in applications <100 rpm
• Lower output voltage
• Typical applications include cranks, timing, TC, TIS, and intermediate transmission speed sensors
Specifications:
- Bore Diameter (in): 0.73
- Connector Pin Count: 2-pin
- Insert Length (in): 0.89
- Overall Length (in): 2.70
- Sensor Type: Speed
WARNING: This product can expose you to chemicals including Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.| Current Part# | 1918303 |
|---|---|
| Manufacturer | CAT |
| Stock | In stock |
| Weight | 0.1000 |
| Hot Deals | No |
| Fits | CAT |
| Type | OEM |
| Warranty | Standard Manufactures |
| Compatible Models | EARTHMOVING COMPACTOR GENERATOR WHEEL-TYPE LOADER CHALLENGER ENGINE - TRUCK PETROLEUM PRODUCTS ENGINE - GENERATOR SET OFF-HIGHWAY TRUCK ENGINE - INDUSTRIAL TELEHANDLER ARTICULATED DUMP TRUCK ROAD RECLAIMER COLD PLANER MOTOR GRADER SKID STEER LOADER WHEEL DOZER ASPHALT PAVER UNDERGROUND ARTICULATED TRUCK PIPELAYER EXCAVATOR MARINE PRODUCTS WHEEL TRACTOR-SCRAPER TRACK-TYPE TRACTOR EXPANDED MINING PRODUCTS LOAD, HAUL, DUMP OEM SOLUTIONS |
Note: Cat® parts shipped within the United States only.
