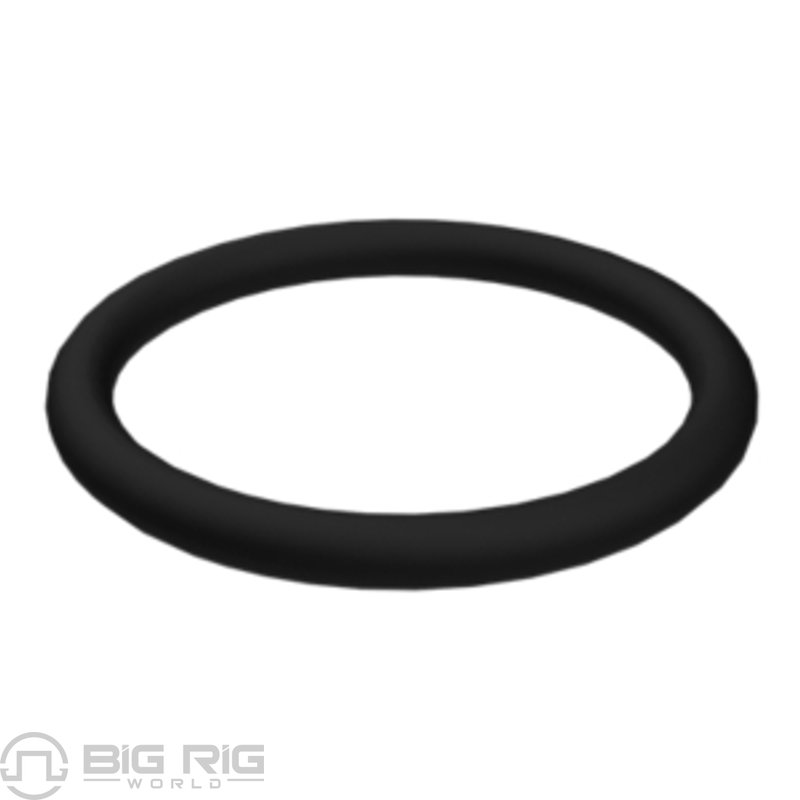

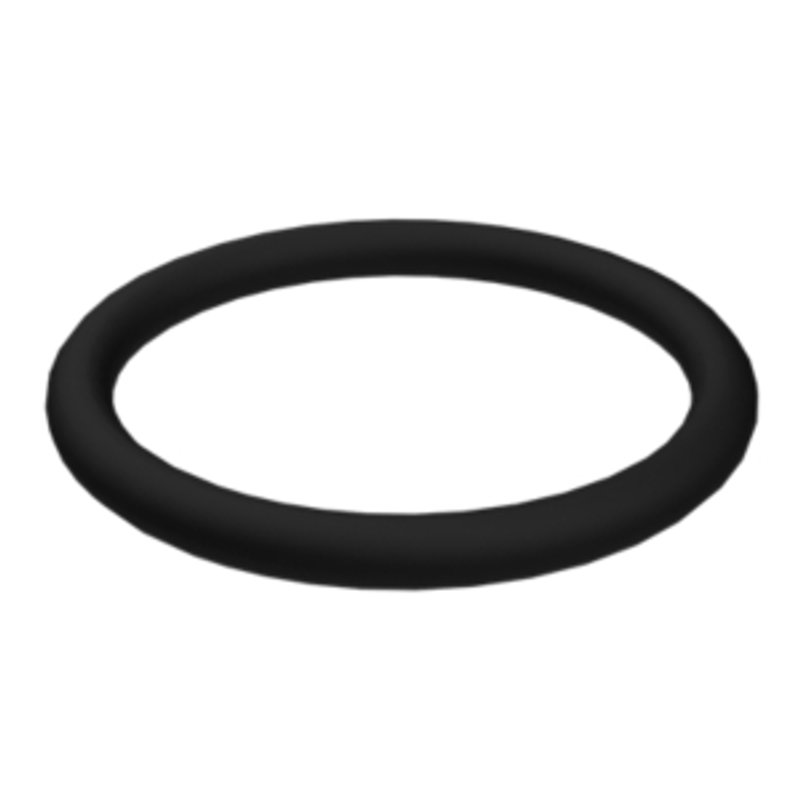

Seal - O-Ring 6V-1585

Description:
O-Rings are mainly used in static application as both axial or radial seals to prevent leakage and contamination.

Attributes:
Cat® O-Rings are made from materials that are matched to the fluids, temperatures and pressures found in Cat® engines and machines. The materials resist wear and extrusion, and provide superior resistance to seal compression set. In addition, certain Cat® O-Rings are coated with PTFE to minimize seal twisting and cutting during seal installation.

Dimensions of our O-Rings are consistently held to tight tolerances to ensure they fit properly into seal grooves with the necessary seal compression.

With over 2500 O-Rings in different sizes and materials, Cat® O-Rings are your best solution for your Cat and other mobile equipment O-Ring needs.

Cat® sealing system uses a robust design, testing, and validation process. Buy the latest Genuine Cat seal to protect your investment.

Applications:
O-Rings are used in a wide variety of applications throughout the entire Cat® product line.

Specifications:

• Applications: Ebullient cooled engine cooling systems
• Coating: None
• Compatible With: Alcohols; Automotive brake fluids; Hot, cold water; Ketones; Ozone and sunlight; Phosphate ester fluids; Silicone fluids; Some dilute acids; Steam (200 Degree C max); Steam (400 Degree F max)
• Cross Section Diameter (in): 0.21
• Dash Size (in): 328
• Inside Diameter (in): 1.85
• Material: EPDM (70), EPDM - Ethylene Propylene Diene Modified
• Material Description: EPDM provides excellent performance in Coolant/Urea applications, and also works well in Air. Do not use in Engine Oil, Diesel Fuel, Hydraulic Oil, Automatic Transmission Fluid or Biodiesel. It has good abrasion and cut resistance.
• Not Compatible With: Aromatic fuels; Diester lubricants; Petroleum fluids
• Notes: Dimensions and Material Descriptions provided for reference only. Color may differ from image.
• Primary Sealing Material: Rubber
• Seal/O-Ring Type: Standard
• Temperature (°F): -67 - 275
