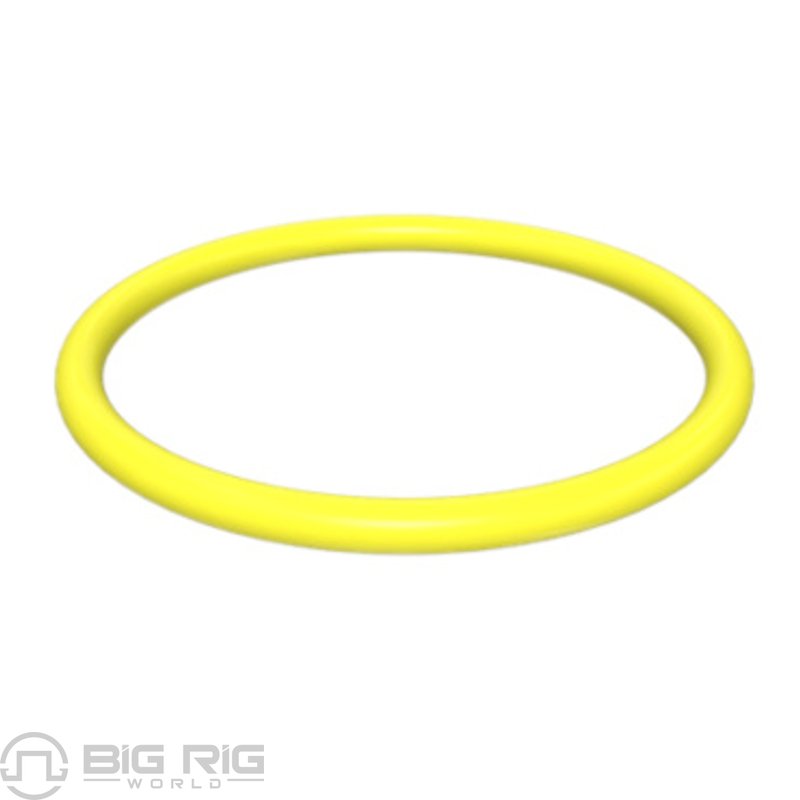

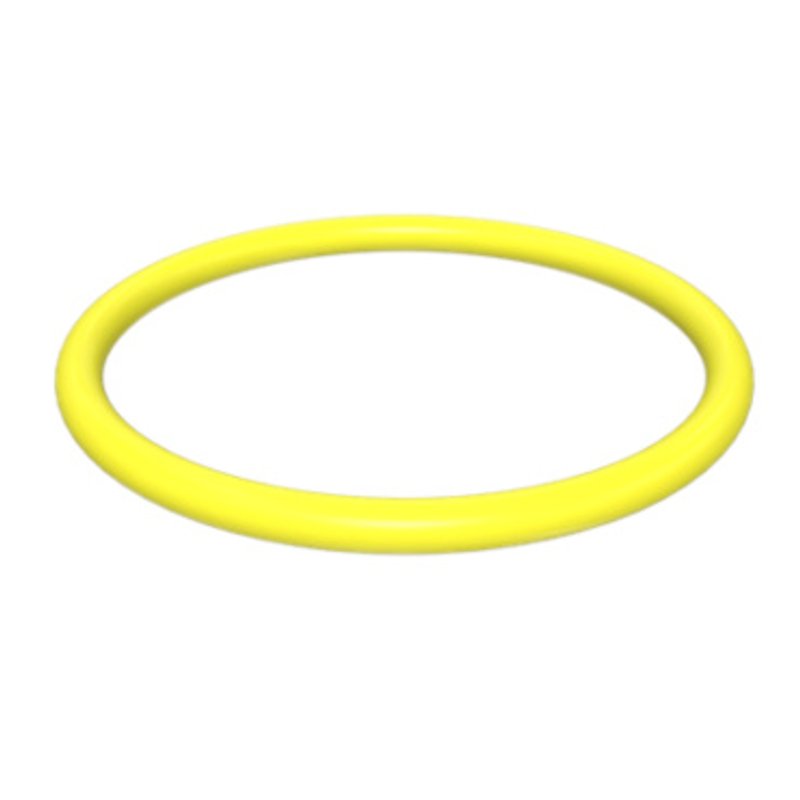

O-Ring Seal

In stock
Part# 5H7704 OLD# -

O-Ring Seal

$10.25
Non-returnable part

O-ring

Description:

O-Rings are mainly used in static application as both axial or radial seals to prevent leakage and contamination.

Attributes:
Cat® O-Rings are made from materials that are matched to the fluids, temperatures and pressures found in Cat® engines and machines. The materials resist wear and extrusion, and provide superior resistance to seal compression set. In addition, certain Cat® O-Rings are coated with PTFE to minimize seal twisting and cutting during seal installation.

Dimensions of our O-Rings are consistently held to tight tolerances to ensure they fit properly into seal grooves with the necessary seal compression.

With over 2500 O-Rings in different sizes and materials, Cat® O-Rings are your best solution for your Cat and other mobile equipment O-Ring needs.

Cat® sealing system uses a robust design, testing, and validation process. Buy the latest Genuine Cat seal to protect your investment.

Applications:
O-Rings are used in a wide variety of applications throughout the entire Cat® product line.

Specifications:

  • Applications: Electrical system seals; High temperature air seals; High temperature static grease seals
  • Coating: None
  • Compatible With: Air; Diacetone alcohol; Ethylene glycol; Extreme high/low temperatures; High aniline point oil; Iso-butyl alcohol; Ozone & UV light; Polyglycol
  • Cross Section Diameter (in): 0.28
  • Inside Diameter (in): 3.72
  • Material: VMQ - Silicone, Silicone (70)
  • Material Description: Silicone performs well in a wide range of temperatures -- from extremely low to moderately high -- and is excellent in Air applications. It is also compatible with Engine Oil. It has limited strength and abrasion/cut resistance, so it is better in low pressure applications. Silicone should not be used with Diesel Fuel, Coolant/Urea, Hydraulic Oil, Automatic Transmission Fluid or Biodiesel.
  • Not Compatible With: Acetone; Aromatic hydrocarbons; EP oil; Fuel oil; Gasoline; Ketones; Low aniline point oils; Petroleum oils; Steam & hot water
  • Notes: Dimensions and Material Descriptions provided for reference only. Color may differ from image.
  • Primary Sealing Material: Rubber
  • Seal/O-Ring Type: Standard
  • Temperature (°F): -50 - 300
 WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov.
More Information
Current Part# 5H7704
Manufacturer CAT
Stock In stock
Weight 0.1000
Hot Deals No
Fits CAT
Type OEM
Warranty Standard Manufactures
Compatible Models

EARTHMOVING COMPACTOR
826C 825C 815 825G II 815F 815B 816 825 825B 826G 826B 816F 816B 826G II

CHALLENGER
65 65D 65C 65B 70C

GENERATOR
SR4 SR5

WHEEL-TYPE LOADER
972G 988 966C 980 980G II 980C 966R 970F 966G 966F II 980G 950 966F 924G 966D 966E 990 II 980B 988G 990

ENGINE - GENERATOR SET
D399 C32 3304 3406C D379B 3456 3306B D398B 3306 C27 3408C 3408B 3412 3406B 3412C 3406 3304B 3406E 3408

ENGINE - TRUCK
3406E 3406C 3306B 3406B C-15 1693 1673 C-18 1673B 3306C C16 3306 C-16 1673C 1674

PETROLEUM PRODUCTS
TH48-E70 C32

WHEEL-TYPE SKIDDER
528 545 528B

OFF-HIGHWAY TRUCK
769 773E 768B 769B 773B 773D 771D 769D 775B

ENGINE - MACHINE
3306

ENGINE - INDUSTRIAL
3406B 3306 D398 3406 D342 D398B D399 G399 D330C D379B G398 C-16 3406C G343 D343 D353E 3304 D353D 3508C G379 3456 G353D D379 3306B D333C D353C G379A SR4 3406E D342C 3408E G342C C-15

TRACK-TYPE LOADER
983 973 955H 977K 955K 955 977L 955L 951 951B 983B 977 977A 977H 973C

ARTICULATED DUMP TRUCK
D350C D400E II D350D 735 D30D D30C D25C D25D D350E II D300E D300B 740 D250E D300E II D35C D250E II D300D

FOREST PRODUCTS
227

MOTOR GRADER
12F 140 12E 140G 160H 16G 14G 14E 140H 12H 160H NA 140B 163H NA 14H NA 12H ES 12H NA 16H NA 140H NA 143H 12G 120 140H ES 160H ES 16H

WHEELED EXCAVATOR
W330B

WHEEL DOZER
824B 814 814F 824 824S 824G 824G II 814B 834 824C 834G 844

UNDERGROUND ARTICULATED TRUCK
AD45B AD55 AD30 AE40 II AD45

EXCAVATOR
330-A L 231D 235 229 330-A LN 235B 330B 225 330B L 330 L 5110B 225B 330-A 330 LN 235C 245 235D 229D 225D 330-A L 350-A 330B LN

PIPELAYER
571F 572G 572R 561C 571G 572F 578

MARINE PRODUCTS
D342C D334 D398B 3306B D379B D333C 3306 D330C D398A D353E D330A 3304 D333A D399 D337F D379A D353C D353D D342 D336

WHEEL TRACTOR-SCRAPER
631G 621E 627 633D 611 627B 637D 621G 651 621 615C 657 637 621F 623B 621B 623G 627G 627E 627F 621S 623 615C II 666 637B 637E 639D 641 637G 631D 657B 615 623E

TRACK-TYPE TRACTOR
D6R 55 7 D6C D7G D7G2 D5 6A 143 D6D D6E D6G2 XL D9R D6F SR D7R D7H D6D SR D6H D7R LGP D6H XR 7U D6G2 LGP D5B 163 6 D7F D6H II 7SU 6S 7S D11R 7A D8L D6G D10R D5M 153 141 D7R XR D11N 57H D6H XL D6R II 140 D10N 5 7S LGP 4 D6G SR 57 D9N D6E SR

LOAD, HAUL, DUMP
R2900G R2900

Note: Cat® parts shipped within the United States only.
