Steering Draglink Assembly 14-17547-000

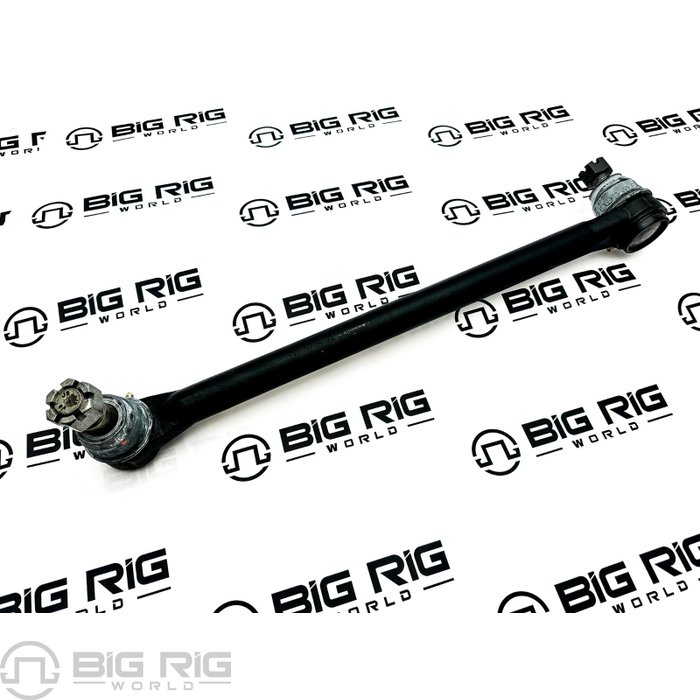

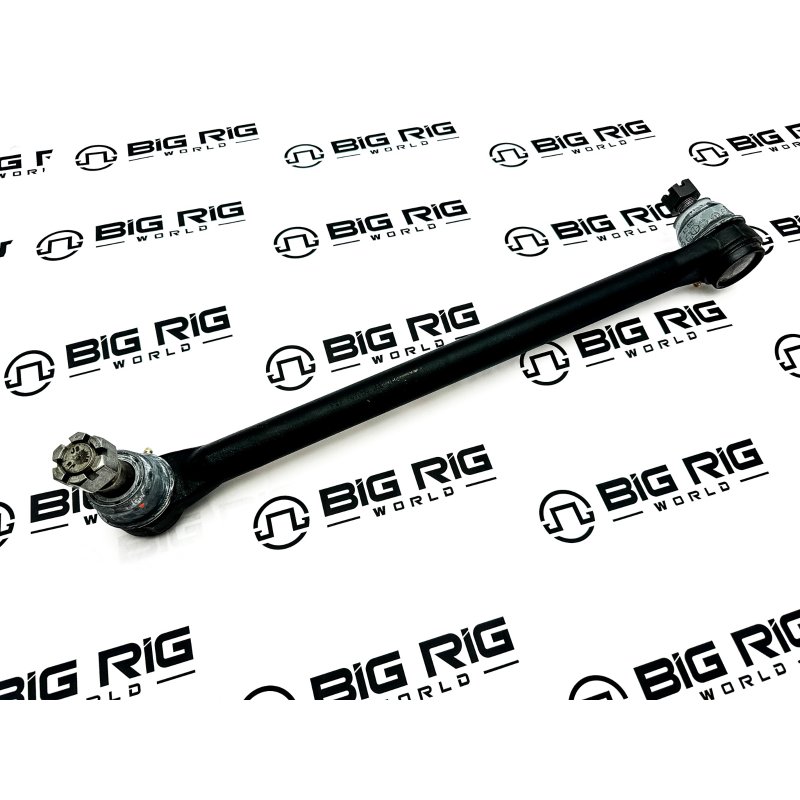

This draglink assembly connects the pitman arm to the steering arm, transmitting steering input to the axle. Designed for precise steering control, the assembly features differing thread sizes at each end and is built to fit applications requiring a short 20.74 inch center-to-center length.

• Shaft Diameter: 1.25 inches
• Center-to-Center Length: 20.74 inches
• End 1 Thread Size: 7/8-14 UNF2A
• End 2 Thread Size: 3/4-16 UNF2A
• Pitman End Taper Length: 1.08 inches
• Axle End Taper Length: 0.93 inch
• Pitman End Gauge Diameter: 0.96 inch
• Axle End Gauge Diameter: 0.78 inch
• Pitman End Angularity: 24 degrees
• Axle End Angularity: 25 degrees
• Pitman Side Angularity: 13.5 degrees
• Axle Side Angularity: 14 degrees

Construction:

• Material: Steel
• Finish: Painted
• Color: Black

Check Out All Our Steering Components!
