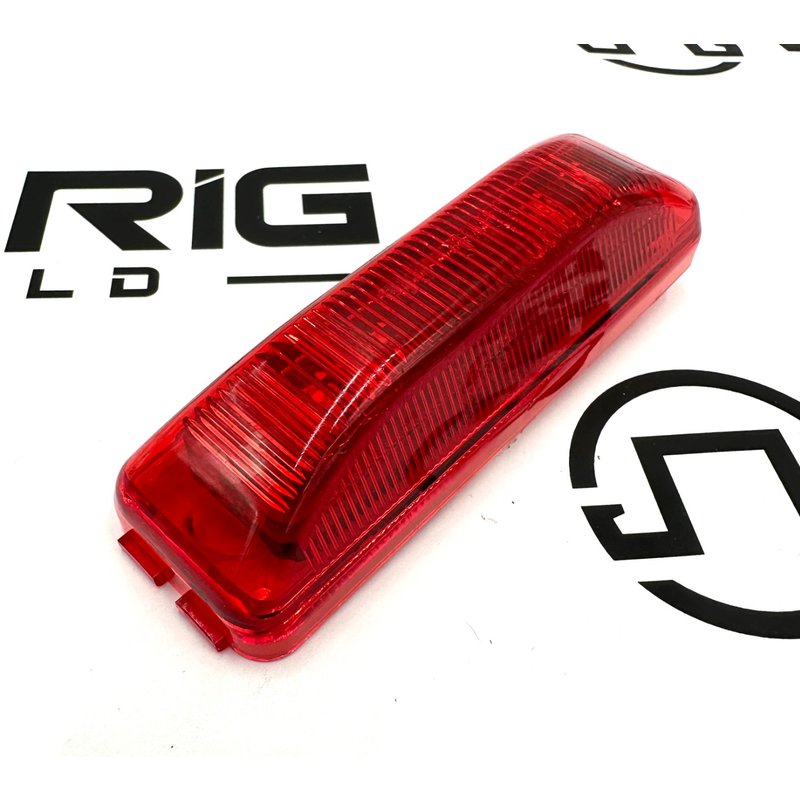

19 Series Red Marker Light

In stock
Part# 19275R OLD# -

19 Series, LED, Red Rectangular, 4 Diode, M/C Light, PC2, 12V

$11.54

19 Series, LED, Red Rectangular, 4 Diode, Marker Clearance Light, PC2, 19 Series Male Pin, 12V

  • Innovative optic design allows combination lamp to function as two.
  • Draws less current, allowing more power for other vehicle requirements.
  • Designed to fit applications requiring minimal space.
  • Must be mounted horizontally.
  • PC-rated lamps meets requirements when mounted on a 45-degree angle.
  • Standard red lamps have 2 diode pattern.
  • PC-rated red lamps and standard yellow lamps have 4 diode pattern.
  • PC-rated yellow lamps have 6 diode pattern.
More Information
Current Part# 19275R
Stock In stock
Old Part No.: N/A
Voltage 12
Manufacture Warranty 3-Year
Manufacturer Truck Lite
Lighting Technology LED
Number of diodes / bulbs 4
Series 19 Series
Std Pack QTY 1
Lamp connection 19 Series Male Pin
Kit No
Lens Shape Rectangular
Lens color Red
Housing Material Polycarbonate
Lens Material Polycarbonate
Mount Type Bracket Mount
Position N/A
Common Size (in) 1x4
Lens Width (in) 3.78
Lens Height (in) 1.23
Total Height (in) 1.23
Total Width (in) 3.78
Total Depth (in) 0.83
Weight 0.1000
