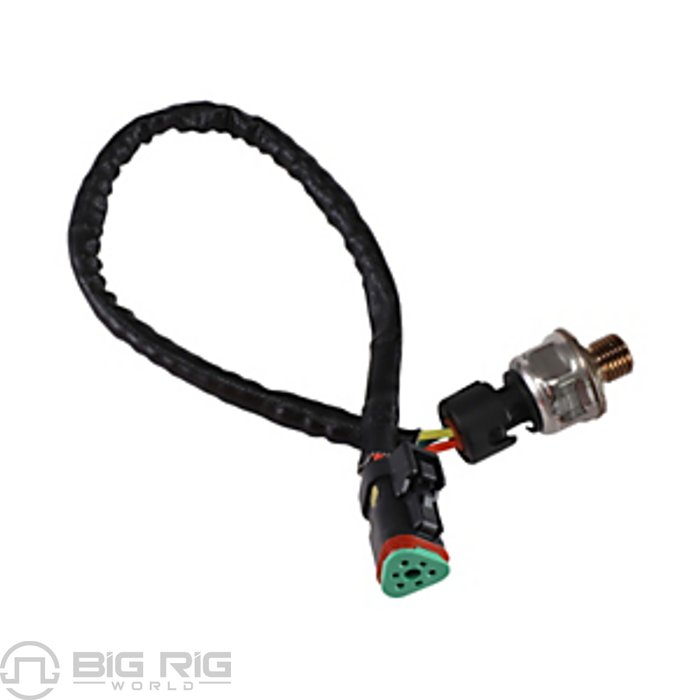

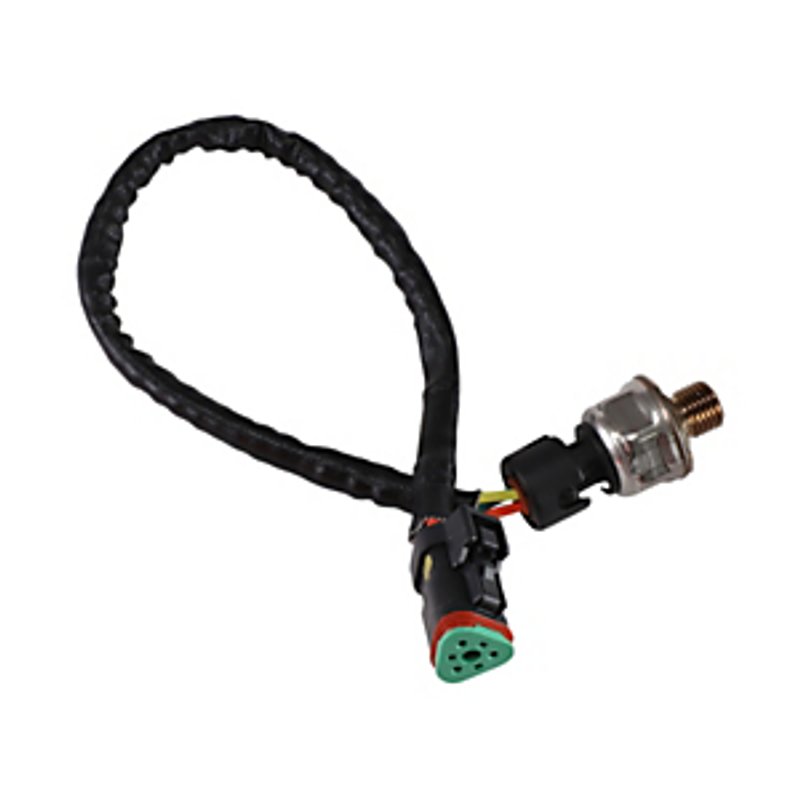

Pressure Sensor 224-4536

Description:
Cat high pressure sensors use strain gage technology that generates an output signal (Analog, PWM or Variable Frequency) that is proportional to the applied pressure. The sensors are available with a variety of electrical connectors and process connection types.

Attributes:
• Small form factor
• Easy installation
• Available with integral connector or various harness lengths

Applications:
• High pressure sensors are widely used in different machine applications, such as brake systems, steering systems, hydraulic systems, etc.
• Cat pressure sensors are application specific sensors. Consult your owner’s manual or contact your local Cat Dealer for more information.

Specifications:

• Connector Pin Count: 3-pin
• Connector Type: 3 Pin DT
• Hole Thread Size (in): SAE #5M
• Sensor Type: Pressure
• Voltage (VAC): 5 DC Regulated

 WARNING: This product can expose you to chemicals including Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
