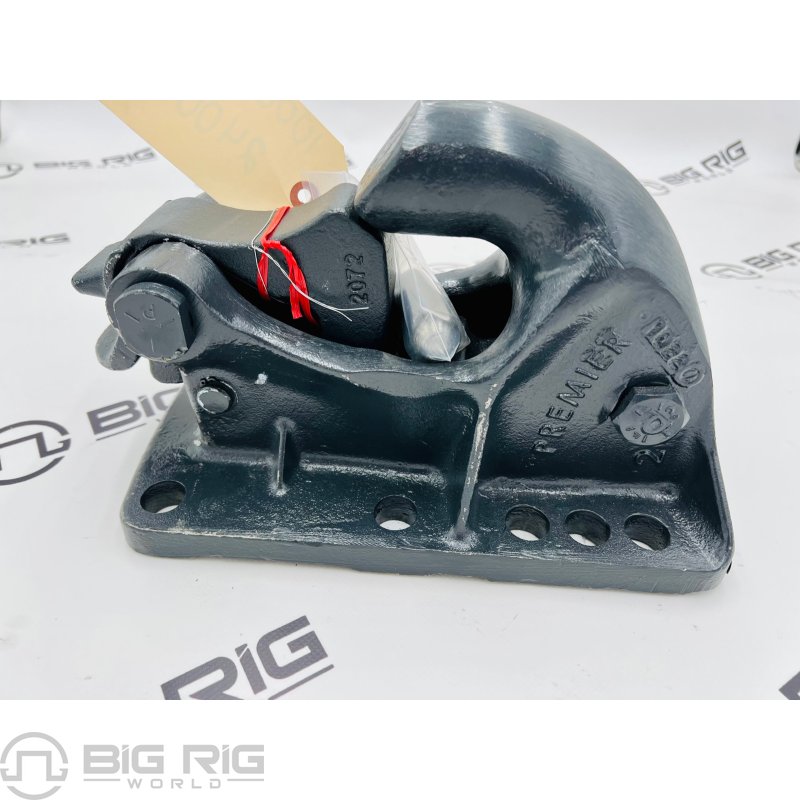

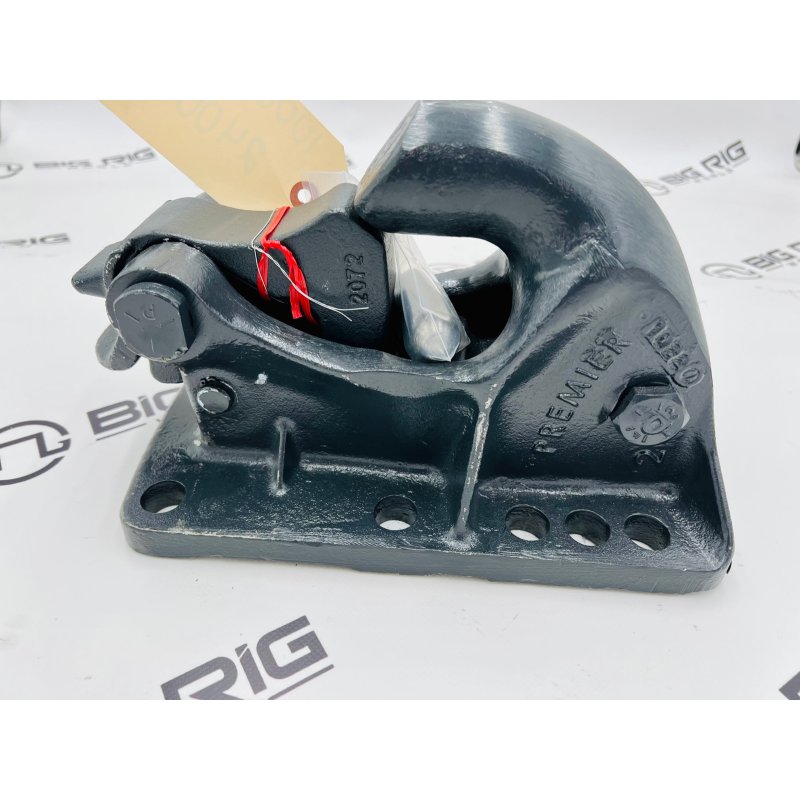

Premalloy Coupling - Pintle 2-1/8 In. Dia. (271 Incl.) 10004713

Part Details:

When installation and mounting is limited by bolt hole pattern, the 10004713 slack reducing coupling may be the answer. Although one of the bottom three mounting holes must be used, you choose which one. This allows for maximum compatibility with existing mounting patterns. Popular with Pup and Dumps and Tanker applications, all 2000 series couplings can be operated with or without an air service chamber.

• Maximum Gross Trailer Weight: 100,000 lbs. (45,359 kg)
• Maximum Tongue Weight: 20,000 lbs. (9,072 kg)
• Ultimate Latch Capacity: 60,000 lbs. (27,216 kg)
• Maximum Eye X-Section: 1 13/16 in. (46 mm)
• Minimum Eye Opening: 2 3/8 in. (60 mm)
• Unit Weight: 34.3 lbs. (15.6 kg)
