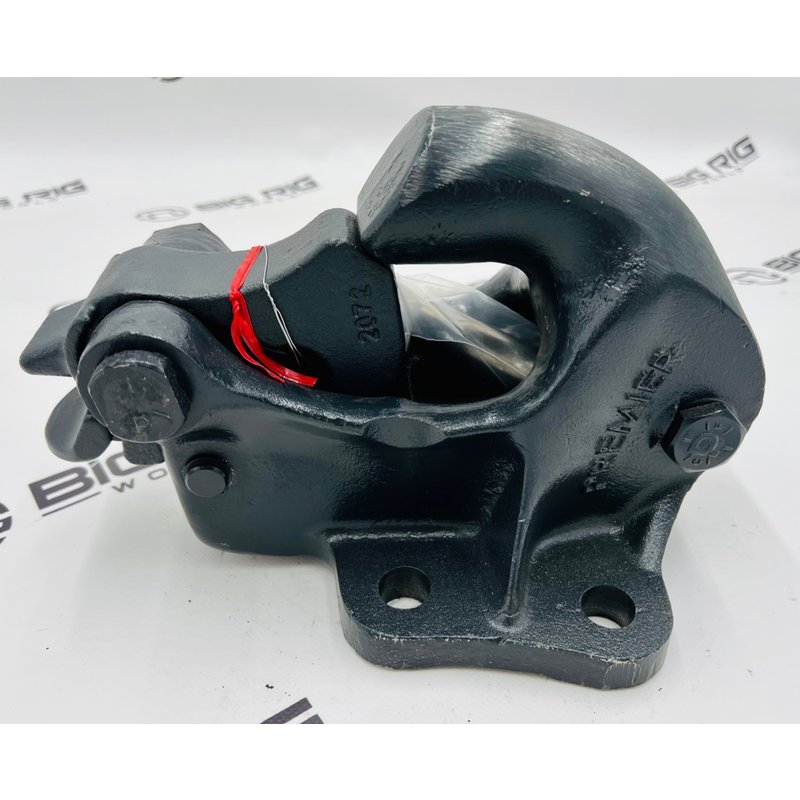

Premalloy Coupling - Pintle 2-1/8" Dia. (271 Incl.) 10004688

- Big Rig World carries Genuine OEM and Aftermarket parts to repair your vehicle at the lowest prices.

The 10004688 model, like our ever-popular 10004733 coupling, features the most popular mounting bolt pattern in the industry. All of our 2000 series couplings offer exceptional latch strength, easy operation, and low maintenance. All 2000 series couplings can be operated with or without an air service chamber. With a maximum gross trailer weight of 100,000 lbs., the 10004688 model coupling is perfect for heavy-duty hauling.

SPECIFICATIONS
Maximum Gross Trailer Weight      100,000 lbs. (45,359 kg)
Maximum Tongue Weight                20,000 lbs. (9,072 kg)
Ultimate Latch Capacity                   60,000 lbs. (27,216 kg)
Maximum Eye X-Section                  1 13/16 in. (46 mm)
Minimum Eye Opening                    2 3/8 in. (60 mm)
Unit Weight                                        29 lbs. (13.2 kg)
