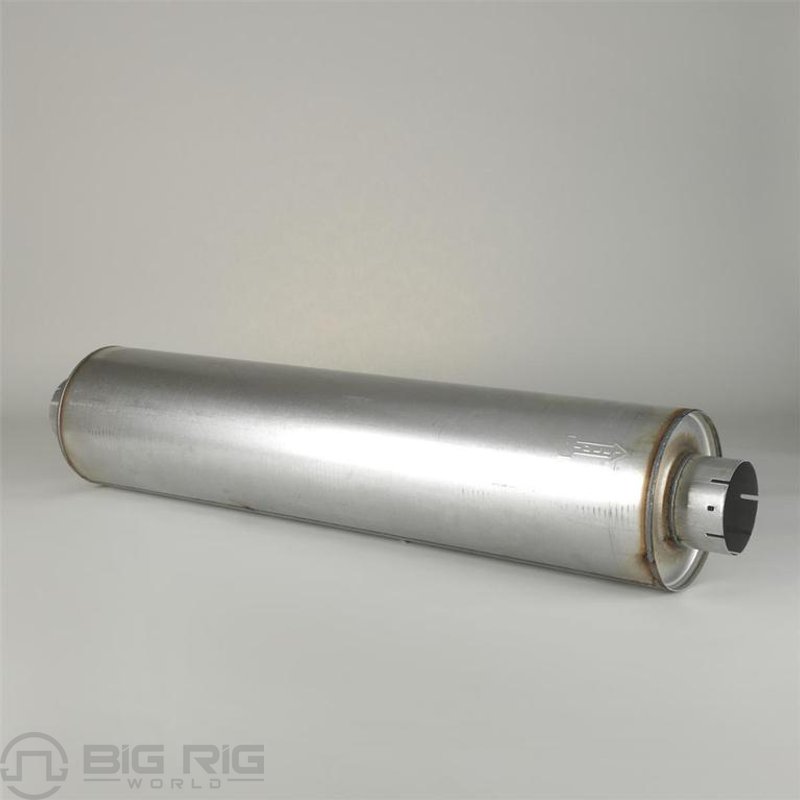

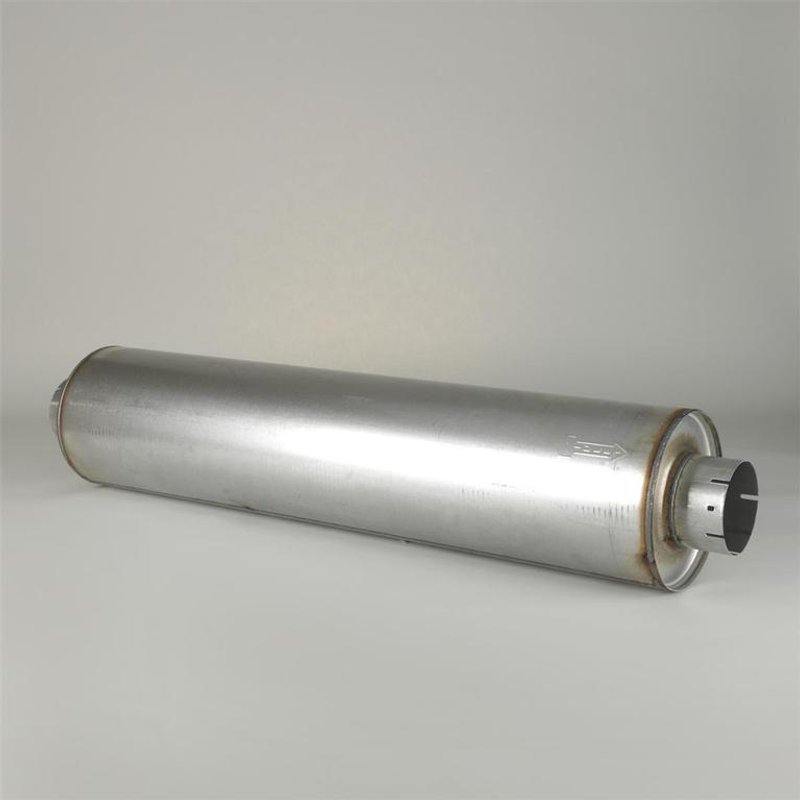

Muffler, Round Style 1 M100463
Package discount applied.
Your savings:
Description
Muffler, Round Style 1
- Big Rig World carries Genuine OEM and Aftermarket parts to repair your vehicle at the lowest prices.
    Attributes
| Inlet Diameter |
5.03 inch (127.64 mm) |
| Outlet Diameter |
5.03 inch (127.64 mm) |
| Body Diameter Maximum |
10.06 inch (255.5 mm) |
| Body Length |
44.44 inch (1128.8 mm) |
| Overall Length |
51.00 inch (1295.4 mm) |
| Rated Flow LR |
2338 cfm (66.2 m³/min) |
| Rated Flow MR |
3097 cfm (87.7 m³/min) |
| Rated Flow HR |
3260 cfm (92.3 m³/min) |
| Back Pressure Low-Range |
0.98 inch Hg (25 mm Hg) |
| Back Pressure Mid-Range |
2.01 inch Hg (51 mm Hg) |
| Back Pressure High-Range |
2.99 inch Hg (76 mm Hg) |
| Attenuation LR |
13 dBA |
| Attenuation HR |
18 dBA |
| Style |
Style 1 |
Shipping Info
Next Day Air services are available for In Stock items. Our shipping cutoff time is Monday - Friday 4:30pm Eastern Standard Time (EST).Â
Â
For more shipping information, please see our Shipping & Delivery page.
More Information
| Current Part# |
M100463 |
| Manufacturer |
Donaldson |
>
