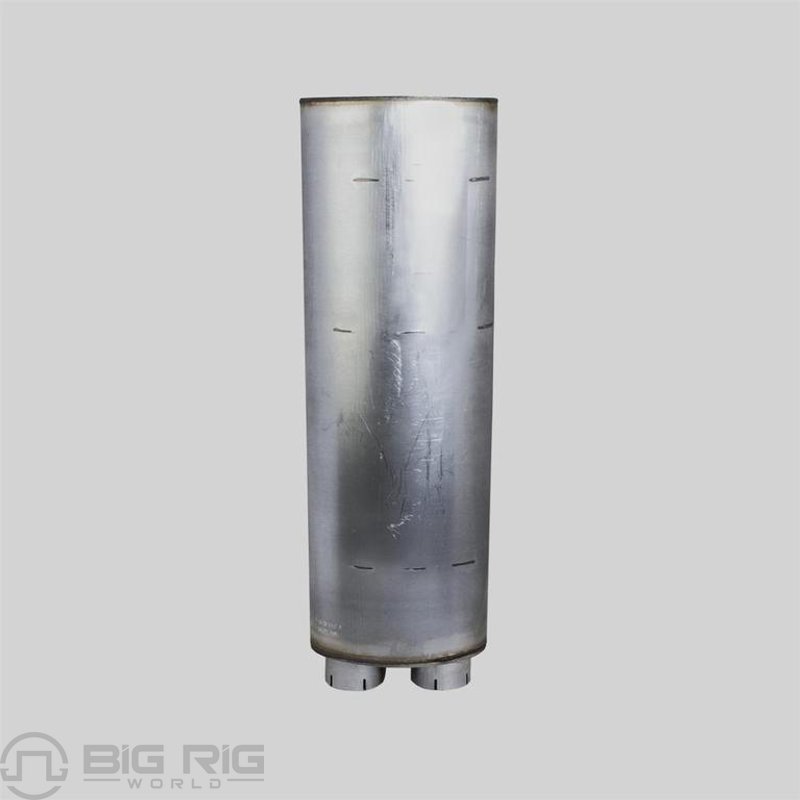

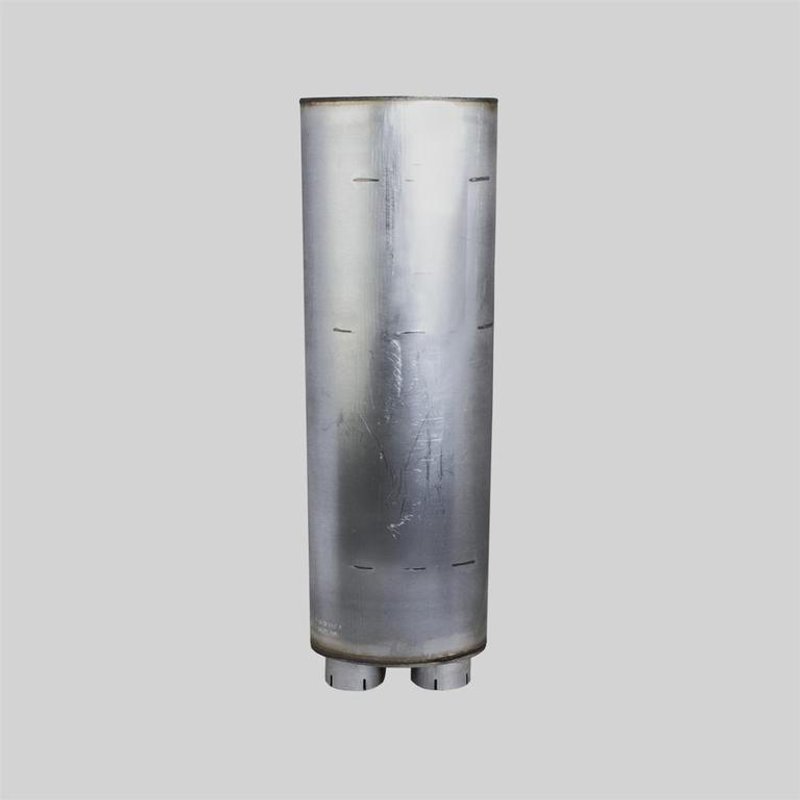

Muffler - Biflow M120450

Part# M120450
Available info
shipping Ships up to 72h

Muffler - Biflow

Package discount applied. Your savings:
Have a Question?


Muffler - Biflow

- Big Rig World carries Genuine OEM and Aftermarket parts to repair your vehicle at the lowest prices.


Inlet Diameter 5.03 inch (127.64 mm)
Outlet Diameter 5.03 inch (127.64 mm)
Body Diameter Minimum 10.00 inch (254 mm)
Body Diameter Maximum 15.00 inch (381 mm)
Body Length 44.02 inch (1118 mm)
Overall Length 47.38 inch (1203.45 mm)
Rated Flow LR 1547 cfm (43.8 m³/min)
Rated Flow MR 2186 cfm (61.9 m³/min)
Rated Flow HR 2677 cfm (75.8 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 13 dBA
Attenuation HR 18 dBA
Inlet Clock Position 3:00
Outlet Clock Position 9:00
Style Style 5

Shipping Info

Please note, next day services are only available for In-Stock items. If an order ships on a pallet with an LTL Freight Service, the shipping quotes are based on commercial addresses only. If you require delivery to a residential address or farm, please contact us. For more shipping information, please see our Shipping & Delivery page.

More Information

Current Part# M120450
Manufacturer Donaldson
Fits Kenworth
Type OEM
Warranty Standard Manufactures
