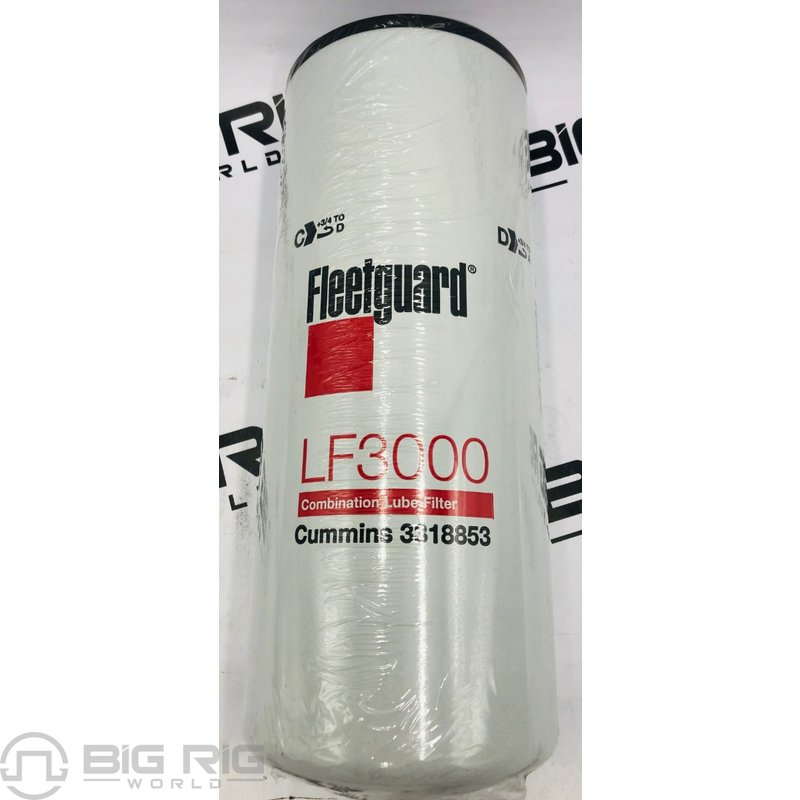

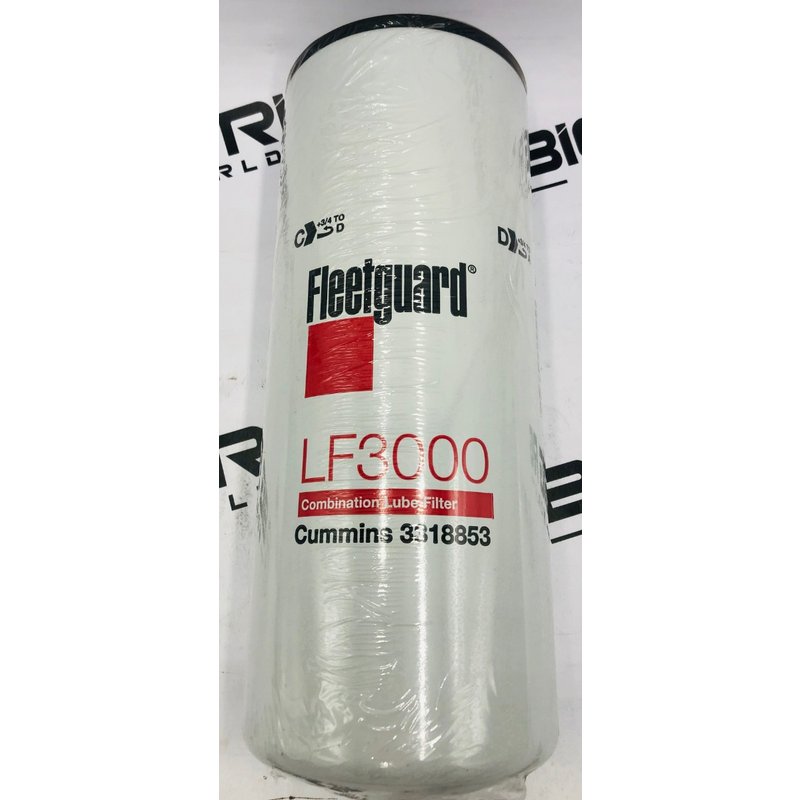

Lube Filter LF3000

Part Details:

• Overall Height:
  • 11.81-inches 301.75 mm
• Largest Outside Diameter:
  • 4.657-inches 118.29 mm
• Seam Outside Diameter:
  • 4.68-inches 118.87 mm
• Gasket Outside Diameter:
  • 4.68-inches 118.87 mm
• Gasket Inside Diameter:
  • 4.01-inches 101.85 mm
• Thread Size:
  • 2 1/4-12 UNS-2B
• Standpipe:
  • Yes
• ADBV:
  • Null
• BPV Setting:
  • 0 kPa (0 PSI)
• 30 MICRON EFFICIENCY, TWA:
  • 98.7%
• Primary Applications:
  • BIURRARENA - 143115
  • CUMMINS - 3318853
• Product Comments:
  • Combination Synthetic Media full flow and stacked disc bypass Can be used to replace LF670, LF777, LF691 and LF3333 See service parts section for adaptors.
  • Alert: ONLY use Fleetguard filter on Cummins applications Stratapore Media
• Uses Service Part:
  • 3826333S - Retro Kit for Cummins Big Cam III and IV engines which use LF670 and LF777 filters
  • 3826362S - Small Oring used with Retro kit
• Uses Service Gasket:
  • 3831773S - Large Gasket
• Upgrade Of:
  • LF3639
• For Upgrade, Use:
  • LF9009 - ESI
• Filter Used With:
  • 3827195S - Remote mount head (1-1/4 inch inlet/outlet)
  • 3834123S - Remote mount head (1-5/16 inch inlet/outlet)
  • 3836091S - Remote mount head (1-5/8 straight threads inlet/outlet)
