Price $1,658.55

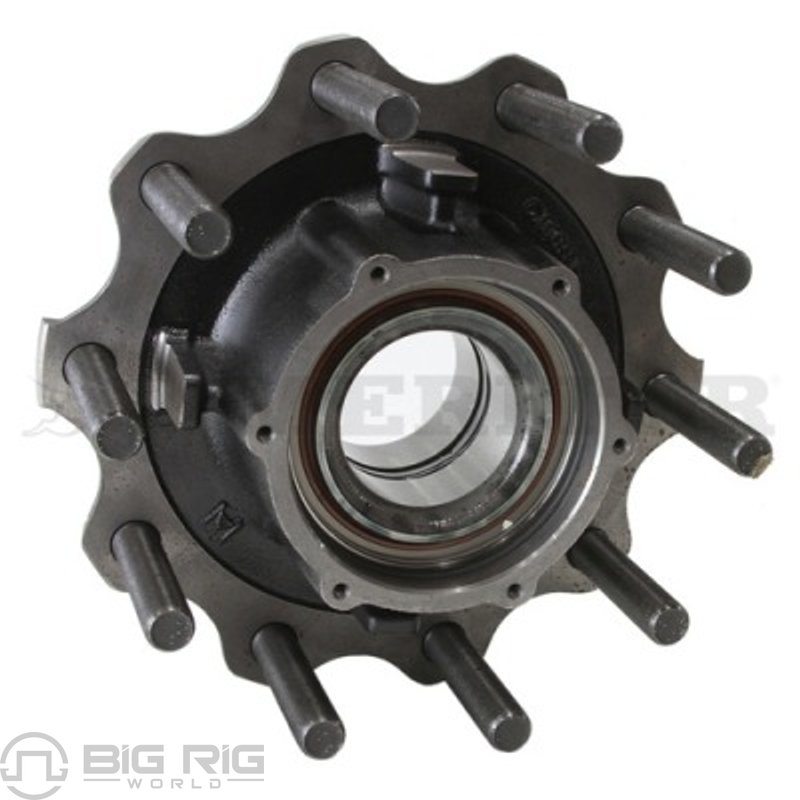

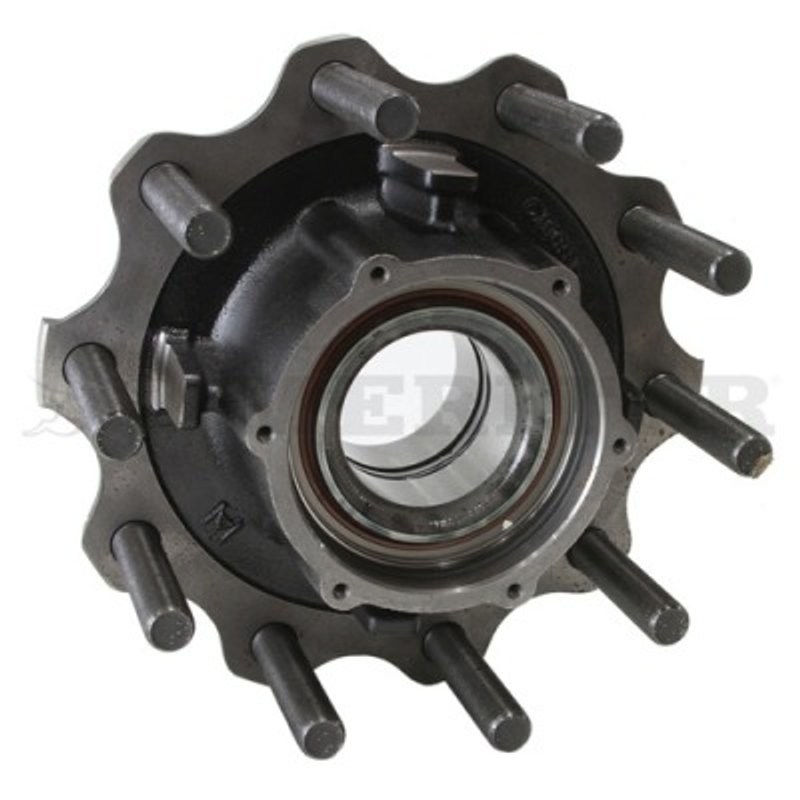

Hub Assembly
Description
Hub Assembly
- Big Rig World carries Genuine OEM and Aftermarket parts to repair your vehicle at the lowest prices.
Part Details
- Description: HUB
- Brand: Meritor MERTR
- Unit of Measure: Each
- VMRS Code: 018-002-046 Hub Assembly - Preadjusted, Rear Drive Wheel
Brand: Meritor Genuine
Marketing Group: Trailer
Axle Series: L (Trl.)
Brake Type: Drum
ABS Capable (on hub): Y
ABS Ring Number: 09-001687
Base Part Number: 15981
Inner Bearing Surface (IBS) to Mounting Face: Cartridge
Hub Type: Trailer
Outer Cone: BTH-0037; 9904-1074**
Inner Cup: BTH-0037; 9904-1074**
Oil Seal: BTH-0037; 9904-1074**
Hub Cap Bolt Circle Diameter: 6.375 in.
Drum Bolt Pattern: 10
IBS to OBS: Cartridge
IBS to Outer Surface: Cartridge
Outer Cup: BTH-0037; 9904-1074**
Wheel Stud Hole: .904/.906 in.
Hub Cap Bolt Thread: 5/16-18 UNC-2B
Hub Cap Pattern: 06
Inner Cone: BTH-0037; 9904-1074**
GAWR (lb): 20000
Drum Bolt Circle Diameter: 11.25 in.
ABS Pilot Diameter: 6.503/6.50 in.
Drum Bolt Size: .904/.906 in.
Wheel Stud Bolt Circle Diameter: 11.25 in.
Wheel Stud Pattern: 10
Notes: **Cartridge Bearing: BTH-0037 (SKF) ; 9904-1074 (Timken)
VMRS Code: 018-002-001
Drum Pilot Diameter: 8.778/8.775 in.
Flange Outer Diameter: 13.00 in.
Wheel Pilot Diameter: 8.653/8.646 in.
Wheel Stud: 09-002003
