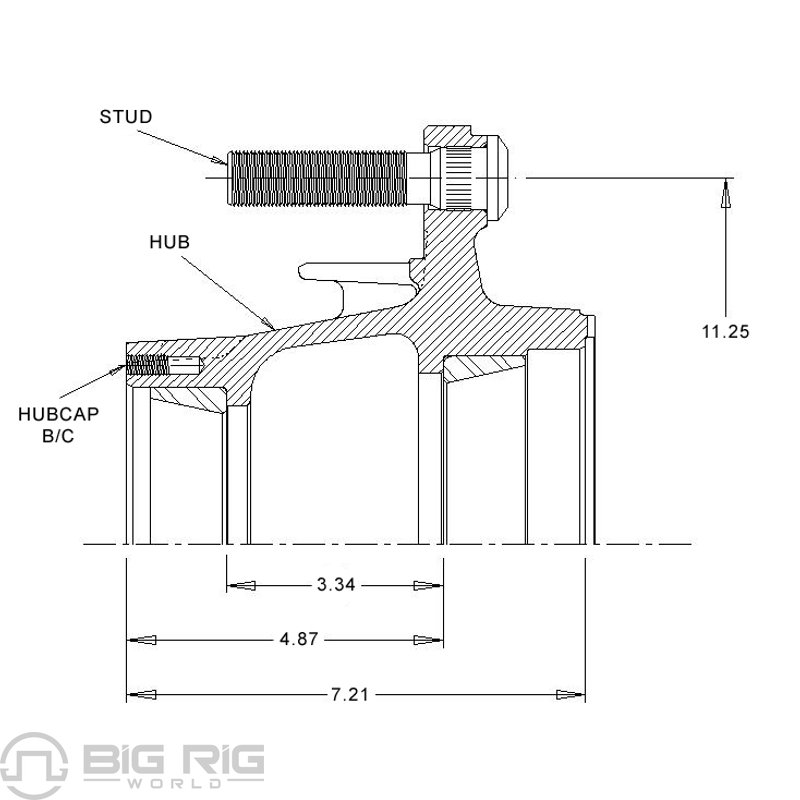

Hub - ABS Assembly, 2023 W/Cups - Boxed 2023PT

HUB INFORMATION
Part Number: 2023PT
Hub Number: 2023
Description: 10 Stud Hub w/11.25 (285.75MM)Dia. Bolt Circle. Uses Outboard Drum
Hub Material: Cast
Mounting Type: BSN or FN
Drum Type: Outboard
Disc Wheel: N/A
Wheel Stud: N/A
Stud Stand Out: N/A
ABS Ring: Direct Machined ABS
Drum Options: 61577F, 68985F, 66800F, 66864F, 66884F, 66814F, 66854F, 66871F
Drum Type: Outboard
Number of Studs: 10
Bolt Circle: 11.25
Stud Description: M22 x 1.5 Serrated Stud or 3/4In. - 16 Serrated Stud
Outer Bearing Cup: HM212011
Outer Bearing Cone: HM212049
Inner Bearing Cup: HM218210
Inner Bearing Cone: HM218248
Webb Axle Group: 2
Cup Code: 1
Notes: Boxed Hub. 20231--0T comes boxed ready to stock on the shelf.
Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.06) from these dimensions when using brake drums having (.56) back plate thickness.
This hub designed for dual wheel mounting or single wheels with 1/2In. maximum offset.
Grease Hubcap Kit: 73655.
