Hub - ABS Assembly, 2023 W/Cups - Boxed 2023PT
Hub - ABS Assembly, 2023 W/Cups - Boxed
Hub - ABS Assembly, 2023 W/Cups - Boxed
- Big Rig World carries Genuine OEM and Aftermarket parts to repair your vehicle at the lowest prices.
Part Details
- Description: ABS ASSY, 2023 W/CUPS BOXED
- Brand: Webb Wheel WBBWH
- Unit of Measure: Each
- VMRS Code: 018-002-046 Hub Assembly - Preadjusted, Rear Drive Wheel
HUB INFORMATION
Part Number: 2023PT
Hub Number: 2023

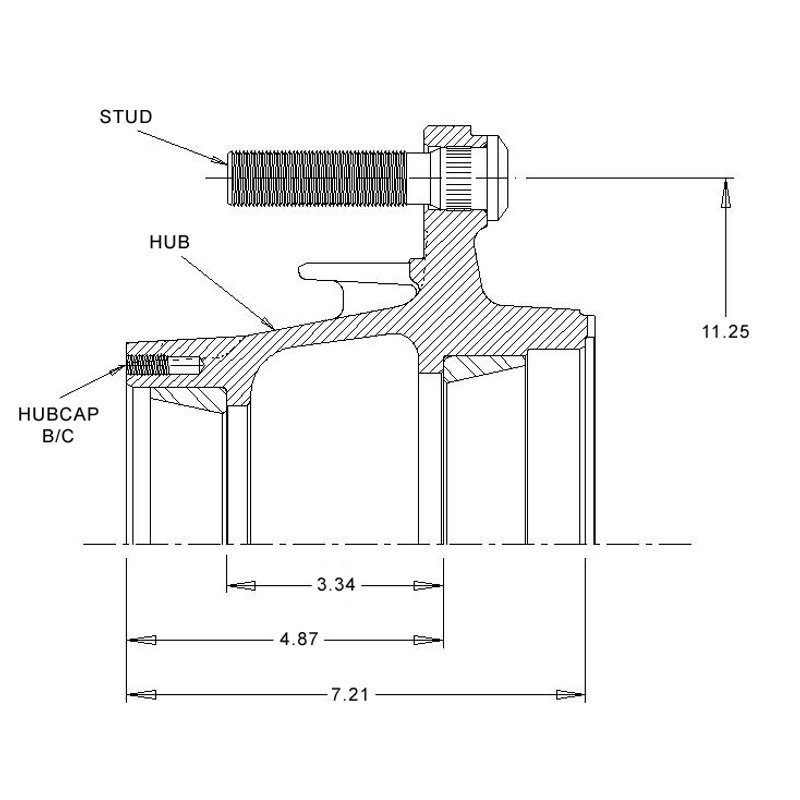

Description: 10 Stud Hub w/11.25 (285.75MM)Dia. Bolt Circle. Uses Outboard Drum
Hub Material: Cast
Mounting Type: BSN or FN
Drum Type: Outboard
Disc Wheel: N/A
Wheel Stud: N/A
Stud Stand Out: N/A
ABS Ring: Direct Machined ABS
Drum Options: 61577F, 68985F, 66800F, 66864F, 66884F, 66814F, 66854F, 66871F
Drum Type: Outboard
Number of Studs: 10
Bolt Circle: 11.25
Stud Description: M22 x 1.5 Serrated Stud or 3/4In. - 16 Serrated Stud
Outer Bearing Cup: HM212011
Outer Bearing Cone: HM212049
Inner Bearing Cup: HM218210
Inner Bearing Cone: HM218248
Webb Axle Group: 2
Cup Code: 1
Notes: Boxed Hub. 20231--0T comes boxed ready to stock on the shelf.
Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.06) from these dimensions when using brake drums having (.56) back plate thickness.
This hub designed for dual wheel mounting or single wheels with 1/2In. maximum offset.
Grease Hubcap Kit: 73655.
Please note, next day services are only available for In-Stock items. If an order ships on a pallet with an LTL Freight Service, the shipping quotes are based on commercial addresses only. If you require delivery to a residential address or farm, please contact us. For more shipping information, please see our Shipping & Delivery page.
| Current Part# | 2023PT |
|---|---|
| Manufacturer | Webb Wheel |
| Stock | Special Order |
| Hot Deals | No |
| Warranty | Standard Manufactures |
