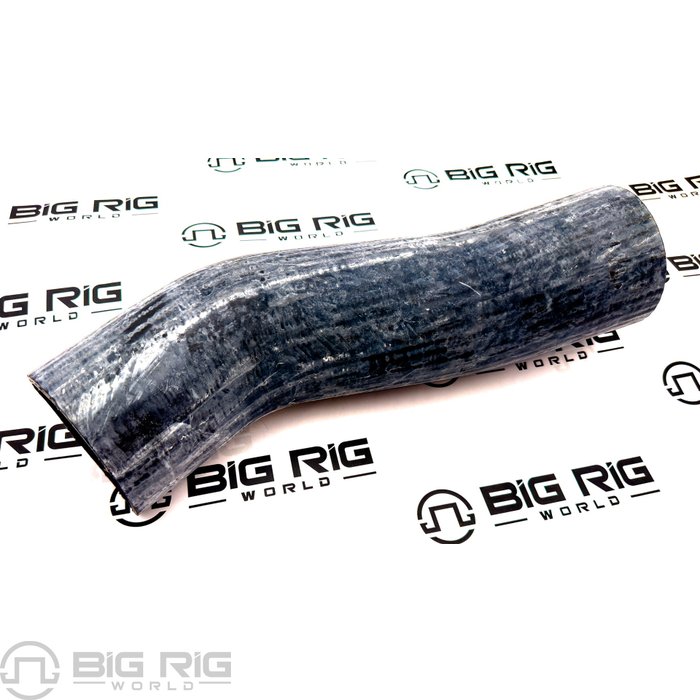

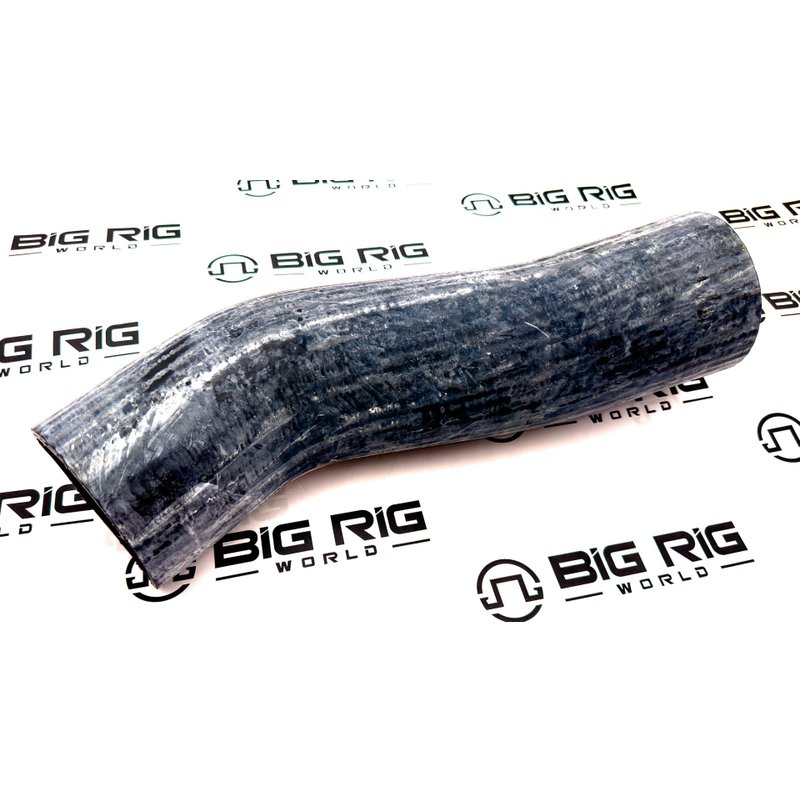

Charge Air Cooler Outlet Hose - Left Side 01-28133-000

This hose routes compressed charge air from the charge air cooler outlet on the left-hand side of the engine. It is constructed from EPDM reinforced with Nomex fiber, making it resistant to the high temperatures and pressures of boosted intake air.

• Function: Transfers compressed air from charge air cooler outlet
• Mounting Location: Left-hand (LH)
• Hose Material: EPDM with Nomex fiber reinforcement
• Working Temperature Range: -40 to 12 °C
• Operating Pressure: 50 psi
• Burst Pressure: 110 psi
• Outer Diameter: 111.80 mm
• Inner Diameter: 101.60 mm
• Wall Thickness: 5.10 mm
• Internal End Diameter: 101.60 mm
• Center‑to‑Center Length: 400.40 mm
