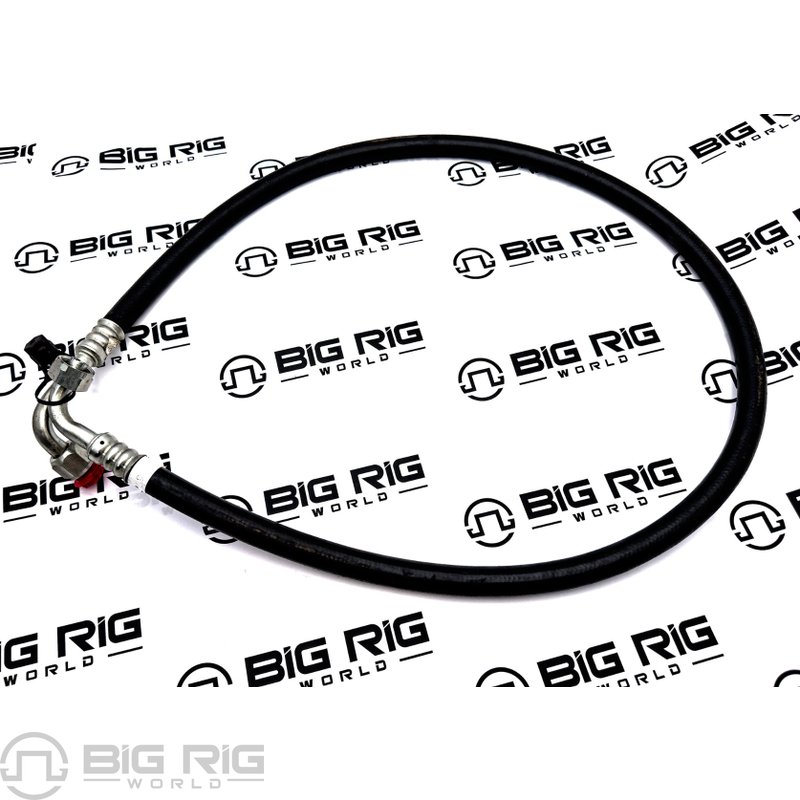

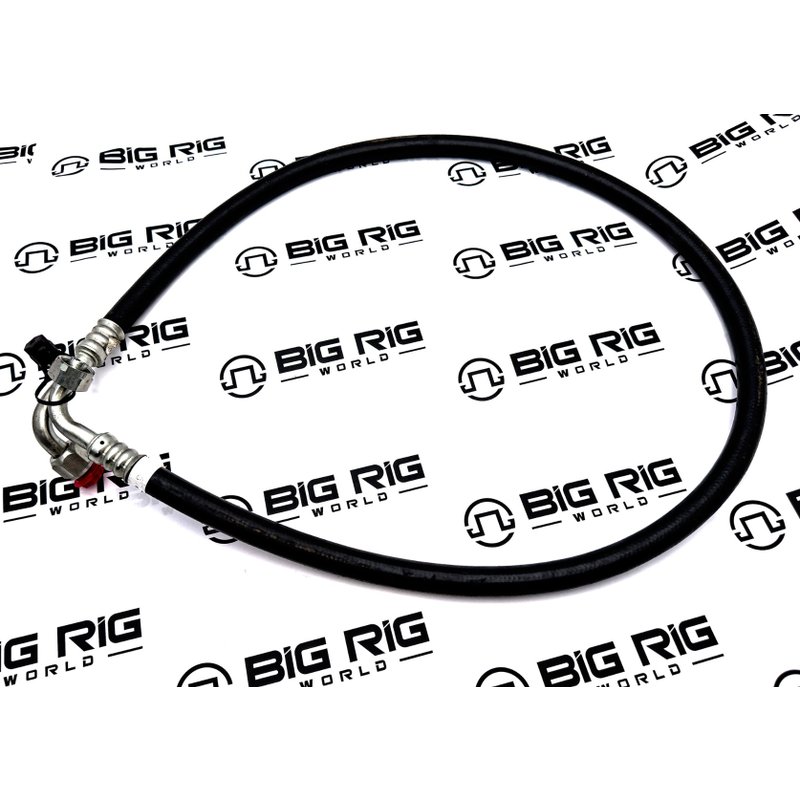

A/C Hose Assembly A22-41332-040

This hose assembly combines a synthetic rubber hose with steel tubing and fittings to create a durable, flexible fluid line. One end features an adapter with a female swivel nut, while the other end is beaded with a female swivel nut—both at a 90° fitting angle. Rated for a 1,000 psi burst pressure, it’s built for reliable use in high-pressure environments and resists flex fatigue.

• End 1 Fitting Type: Adapter with Female Swivel Nut
• End 2 Fitting Type: Beaded with Female Swivel Nut
• Hose Material: Synthetic Rubber
• Fitting Material: Steel
• Tube Material: Steel

• Hose Inner Diameter: 0.63 inch
• Hose Outer Diameter: 0.97 inch
• Tube Outer Diameter: 0.63 inch
• Tube Wall Thickness: 0.05 inch
• Center To Center Length: 68 inches
• Hose Wall Thickness: 0.17 inch
• Tube Inner Diameter: 0.53 inch
• Fitting Angle: 90 degree
• End 1 Fitting Thread Size: 1-14 UNS 2B inch
• End 2 Fitting Thread Size: 7/8-14 inch
• Standard End 2 Fitting Size: #10/12
• Standard Hose Size: #12

• Burst Pressure: 1000 psi
