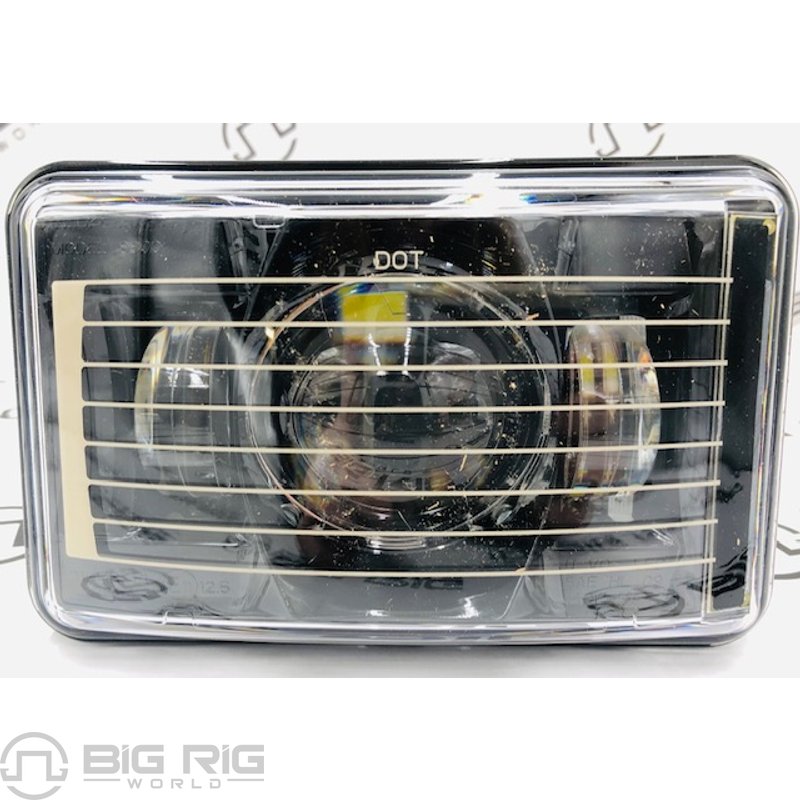

Headlight - Heated 8800 EV2 4x6 LED HB 0552671

Part Details:

• Model 8800 Evolution 2
• Input Voltage: 12-24 V
• Operating Voltage: 9-32 V
• Red Wire: High Beam
• Black Wire: Ground
• Current Draw:
  • 3.30A @ 12V
  • 1.67A @ 24V
• Height: 107.19 mm / 4.22 in
• Width: 167.64 mm / 6.6 in
• Depth: 84.90 mm / 3.34 in
• Shape: Rectangular
• Outer Lens Material: Hardcoated Polycarbonate
• Outer Lens Color: Clear
• Housing Material: Die-Cast Aluminum
• Housing Color: Black
• Bezel Color: Black
• Mounting Type: Low-Profile Panel Mount
• Retrofits: 1A1 and 2A1 (4" 1 6") sealed beams
• Minimum Operating Temperature: -40 °C / -40 °F
• Maximum Operating Temperature: 65 °C / 149 °F
• Connector or Wiring H4 Connector - AMP (#172615-2)
• Mating Connector LH Terminal - AMP (#172795-1); RH
• Terminal - AMP (#172796-1)

Features:

• Available with a SmartHeat® Heating System that automatically de-ices headlight according to ambient temperature
• Meets proposed National Highway Transportation Safety Administration (NHTSA) guidelines for a 5-Star NCAP-compliant low beam headlight
• Drop-in replacements for typical buckets/panels used in heavy-duty trucks
• Tough, die-cast housing, with added protection from salt spray for efficient thermal management
• Superior condensation management
• Street legal supporting DOT, Transport Canada ECE and Military standards & requirements
