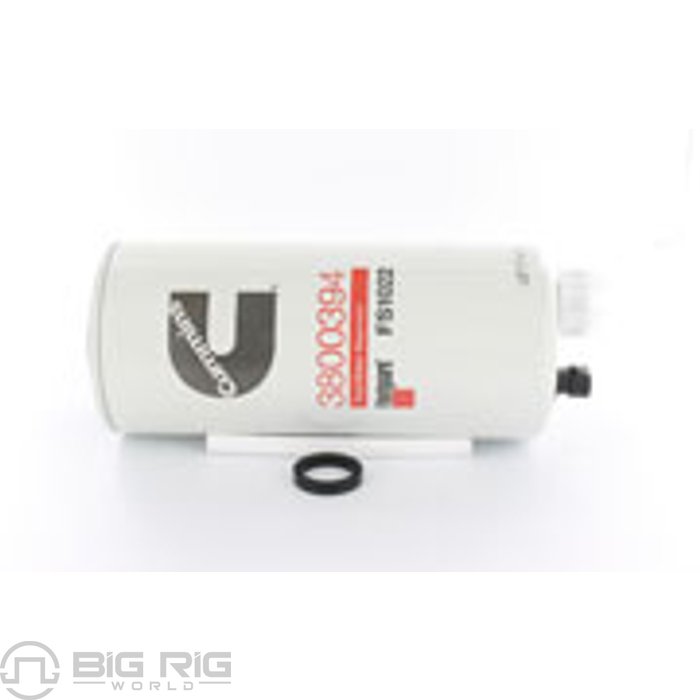

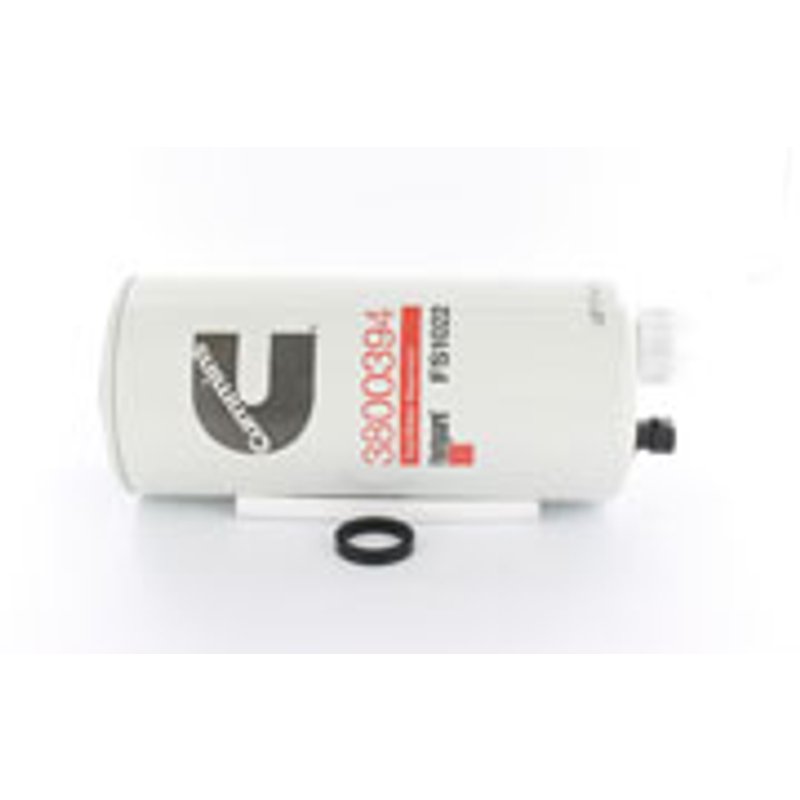

Fuel Water Separator Filter FS1022

Part Details:

• Overall Height:
  • 9.382 In / 238.3 mm
• Largest Outside Diameter:
  • 3.694 In / 93.83 mm
• Seam Outside Diameter:
  • 3.681 In / 93.5 mm
• Gasket Outside Diameter:
  • 2.83 In / 71.88 mm
• Gasket Inside Diameter:
  • 2.46 In / 62.48 mm
• Thread Size: 1-14 UNS-2B
• Standpipe: Yes
• Emulsified Water Separation: 95% / 95%
• Free Water Separation: 95% / 95%
• Efficiency, TWA by SAE J 1985: 98.7% / 98.7%
• Micron Rating by SAE J 1985: 10 Micron / 10 Micron
• Primary Applications: Cummins 3800394
• Product Comments: Cummins ISC Engine includes WIF Sensor Port Stratapore Media
• Uses Service Part: 3953517S
• WIF Sensor: Metal version of FS42260
• Filter Used With: 3962018S
