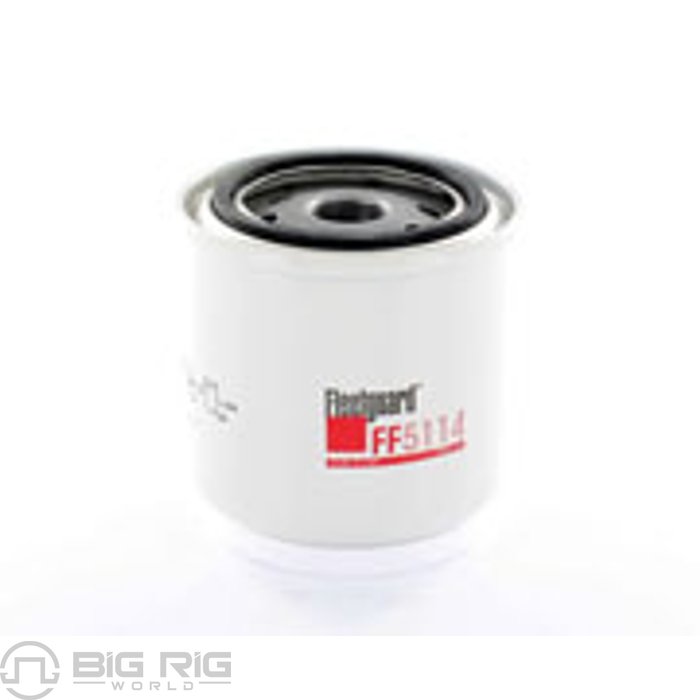

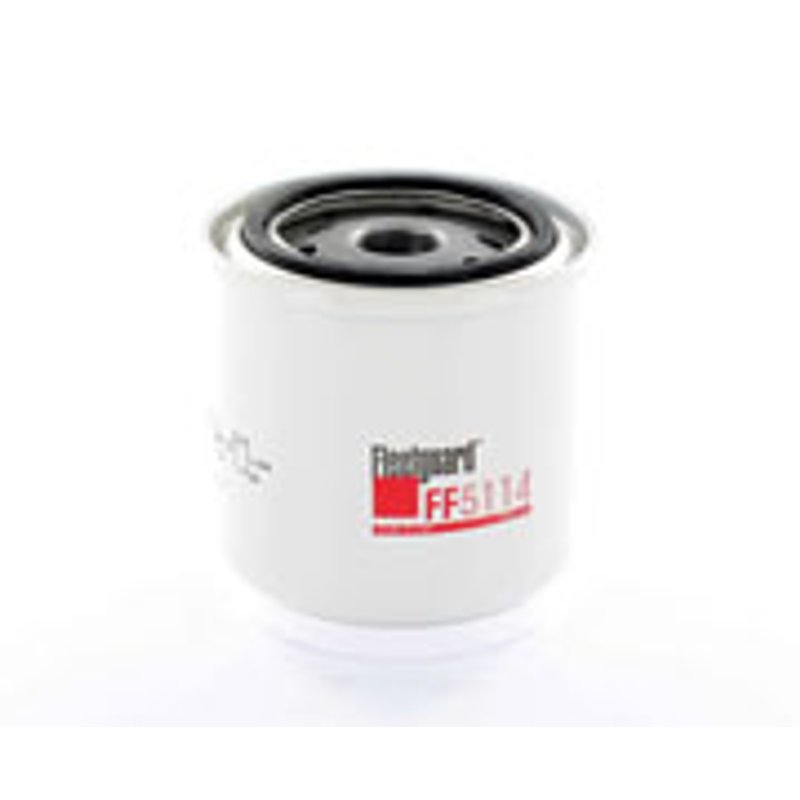

Fuel Filter FF5114

Part Details:

• Overall Height:
  • 3.22-inches / 81.79 mm
• Largest Outside Diamter:
  • 3.17-inches / 80.52 mm
• Seam Outside Diameter:
  • 3.31-inches / 84.07 mm
• Gasket Outside Diameter:
  • 2.52-inches / 64.01 mm
• Gasket Inside Diameter:
  • 2.26-inches / 57.4 mm
• Thread Size: 3/4-16 UNF-2B
• Standpipe: No
• EFFICIENCY, TWA BY SAE J 1985: 97 % (97 %)
• MICRON RATING BY SAE J 1985: 20 micron (20 micron)
• Primary Applications:
  • CUMMINS:
    • C6003112110
    • C6003117460
  • FIAT HITACHI
    • 76595561
  • GMC
    • 94414796
  • KOMATSU
    • 6003112110
    • 6003117441
  • NISSAN
    • 16403Z7000
  • TOYOTA
    • 2330356031
