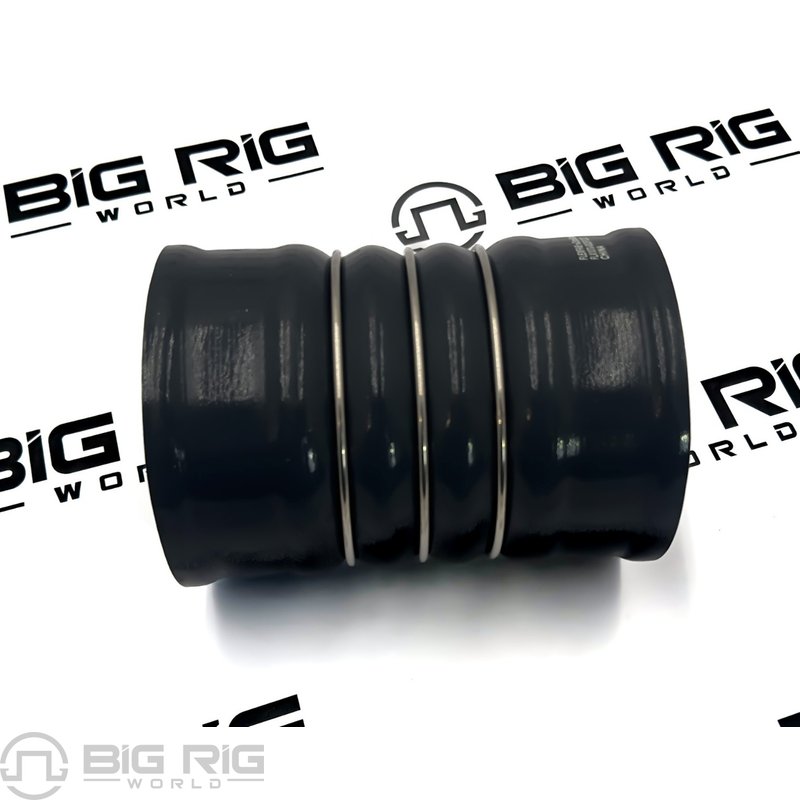

Duraguard Charge Air Connector - 4 Inch DIA FLX1070-0003

FlexFab DuraGuard Heavy Wall Charge Air Connector (CAC)

Part Details:

• Inside Diameter: 4"
• Outside Diameter: 4.23"
• Length: 6"
• Max Operating Pressure (PSI): 70

Construction:

• 4-Ply Heavy Duty Silicone Coated Meta-Aramid Fabric with Heavy Duty Stainless Steel Pressure Retention Rings
• High temperature fluorocarbon elastomeric liner

Specifications:

• Temperature range is -65°F (-54°C) to +500°F (+260°C)
• Wall thickness is .117/.163
• Designed to meet the EPA 2007 and EURO IV & V requirements for reduced emissions

Applications:

• Used on diesel engines to deliver pressurized intake air to the charge air intercooler and intake manifold
• Fluororocarbon lining eliminates closed crankcase vapors from permeating through the sidewall of the intercooler connection bellows at 500°F (260°C)
