Dual Foot Valve TV286171TEC

TV286171

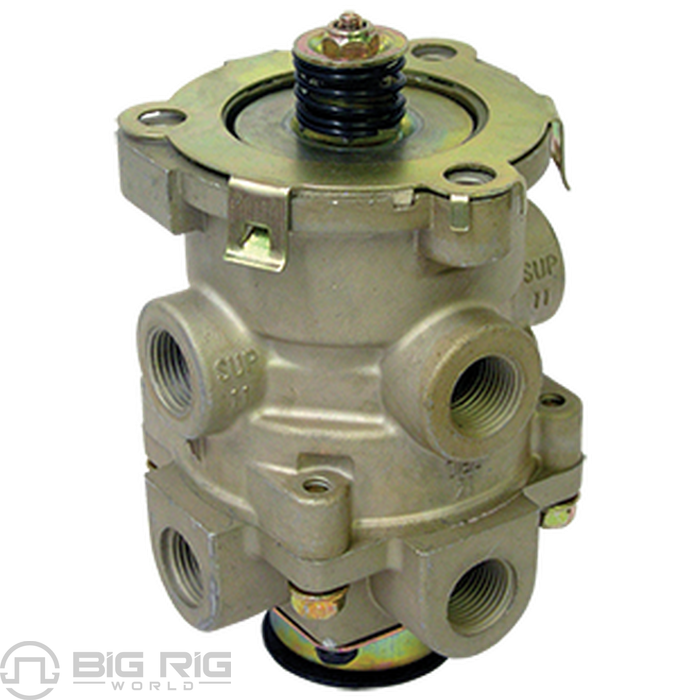

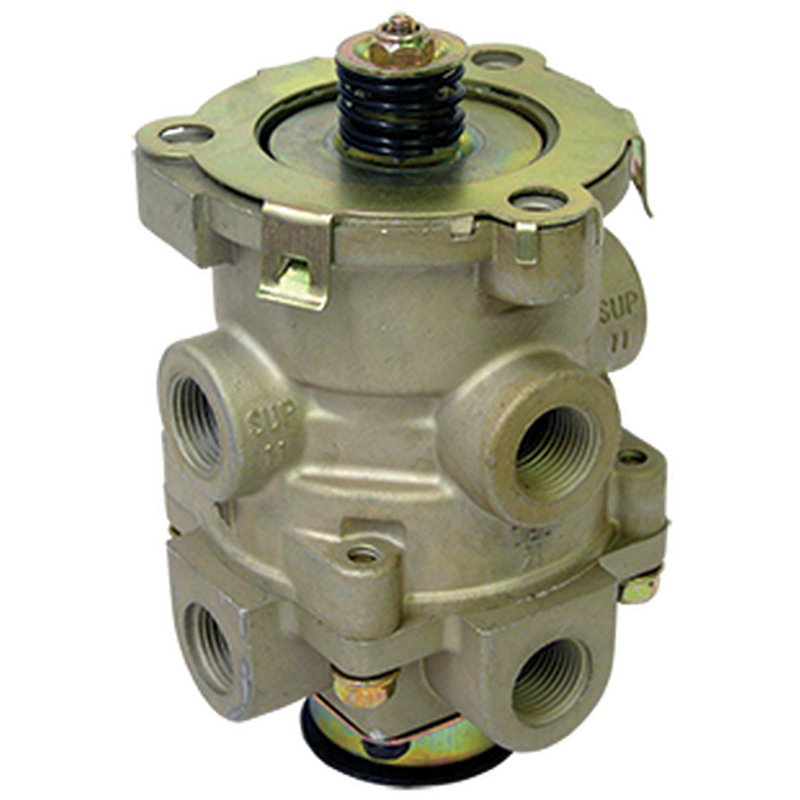

Dual Foot Valve

Application: The Dual circuit Foot brake valve utilizes two separate supply and delivery circuits for service and secondary braking. The number one or primary circuit portion is mechanically operated through the action of the treadle/pedal and plunger. The number two or secondary circuit normally operates similar to a relay valve, with control air delivered from the number one primary circuit. In the emergency mode (failure of the primary supply), the secondary inlet valve is mechanically opened by a push through mechanical force from the driver's foot via the treadle/pedal, plunger and primary piston.

The Dual brake foot valve is a floor mounted, treadle operated valve with two separate supply and delivery circuits.

• Used in a dual circuit system
• Upper section of valve feeds from reservoir 1
• Lower section of valve feeds from reservoir 2
