Differential Yoke End 1710 W/Slinger 6-4-9191-1X

Dana Spicer
Part# 6-4-9191-1X
note
Differential Yoke End 1710 W/Slinger 6-4-9191-1X - Dana Spicer

Differential Yoke End 1710 with Slinger

Package discount applied. Your savings:
info
shipping-move Ships in 1-3 days
Have a Question?
Live Chat chat or Contact us

Description

Differential Yoke End 1710 with Slinger

Part Details:

Description Specifications
Brand Spicer
Series 1710
Spline Count 41
Yoke Style HR
Hub Diameter R 2.938
C/L To End Hub S 6.625
Type Splined Hole
Outside Yoke Dimension (In) E 6.190
Yoke Bearing Dimension (In) D 1.938
Major Diameter 2.143
Involute Spline Y
VMRS 022004082
Length Thru Hole Q 3.000
C-Bore Depth 0.380
Includes Slinger/Plug Y
Assembly Y
Material Steel
Package Type Each
Package Qty 1
Weight 12.9 LB



Check Out All Of Our Yoke Assemblies!



Shipping Info

Next Day Air services are available for In Stock items. Our shipping cutoff time is Monday - Friday 4:30pm Eastern Standard Time (EST).



For more shipping information, please see our Shipping & Delivery page.

More Information

Current Part# 6-4-9191-1X
Part# variations 6-4-9191-1X DAN,
6-4-9191-1X ETN,
6-4-9191-1XDAN,
6-4-9191-1XETN,
ETN6-4-9191-1X,
SP 6-4-9191-1X,
SP6-4-9191-1X
Manufacturer Dana Spicer
Material Steel

Related Products

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
End Yoke Assembly 170-4-241-1X - Spicer
End Yoke Assembly 170-4-241-1X
Spicer
Part# 170-4-241-1X
shipping-move Ships in 1-3 days
$300.83
End Yoke Assembly 170-4-281-1X - Spicer
End Yoke Assembly 170-4-281-1X
Spicer
Part# 170-4-281-1X
shipping-move Extended Lead Time
Special Price $221.06 Regular Price $247.90

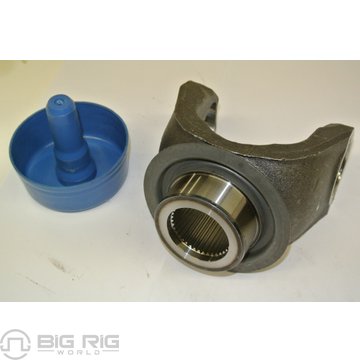

Yoke Assembly - End 1710 2.024-39 Is W/Slngr 6-4-10321-1X - Dana Spicer
