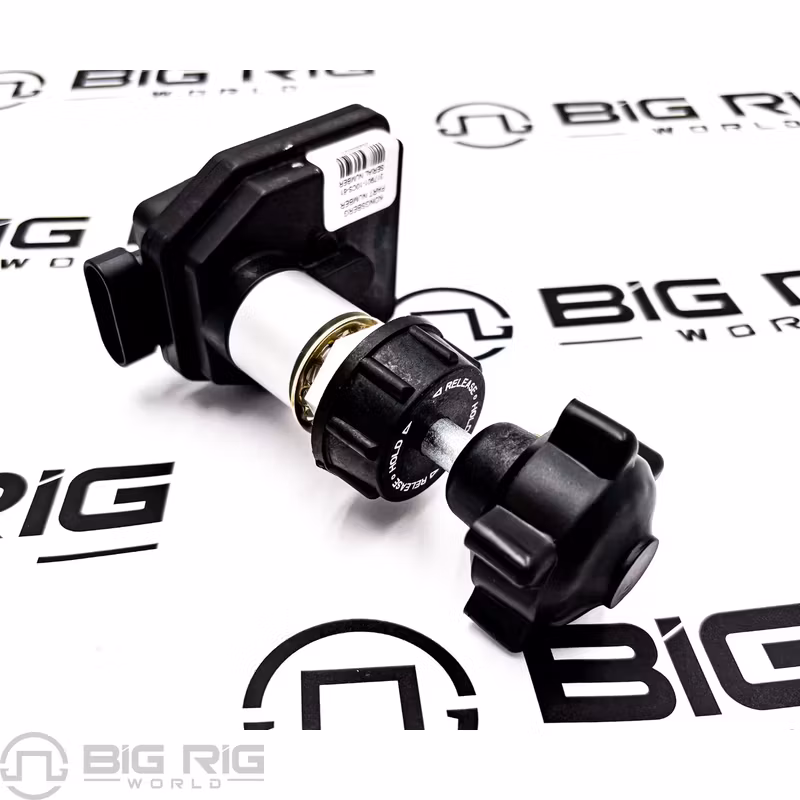

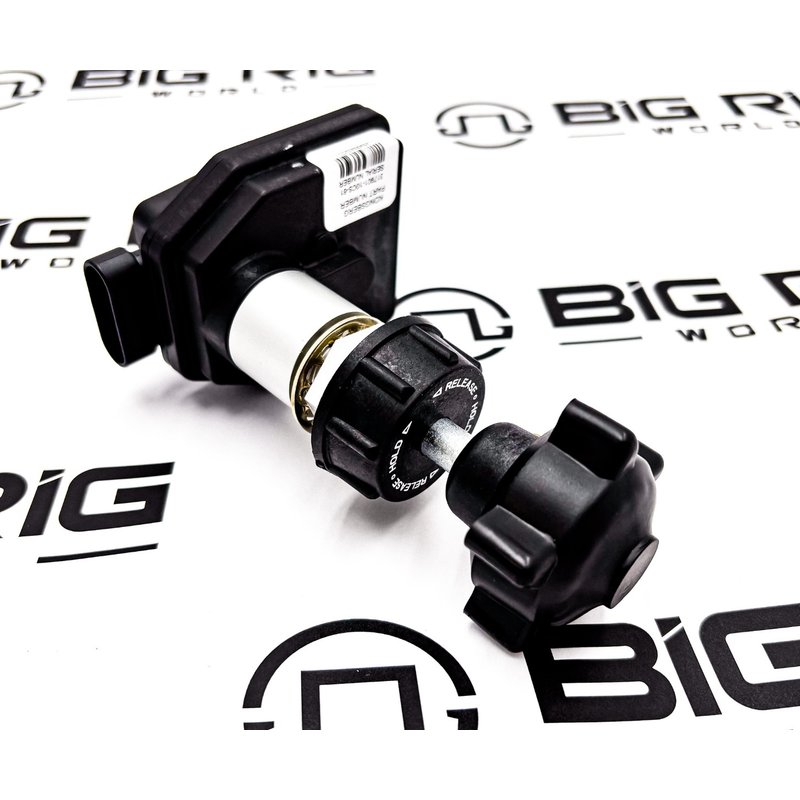

Hand Throttle Multi Turn Control MH2000 317901-10CS-61

This multi-turn hand throttle control is designed for precise engine speed regulation in heavy-duty applications. It features a sealed housing with a hall-effect sensor for accurate, contactless operation. The two-turn rotational range allows fine adjustment from idle to full throttle, while the locking collar and quick return-to-idle feature provide stable and safe operation under vibration and environmental stress.

• Two full turns (720-degrees) from idle to full throttle
• Clockwise rotation
• Hall-effect non-contact sensor (vSENSE™ technology)
• Analog output range (typically 10–90% of supply voltage)
• Operating voltage: 5 V (analog systems), up to 24 V (PWM variant)
• Fully sealed to IP67 standard
• Operating temperature range: –40 °C to +85 °C
• Salt spray resistance: 96 hours (ASTM B117)
• Standard Metripack connector; compatible with optional harness
• Adjustable locking collar for vibration resistance
• Panel mount with approx. 0.78 in cutout diameter
• Confirm compatibility with specific vehicle model before installation
