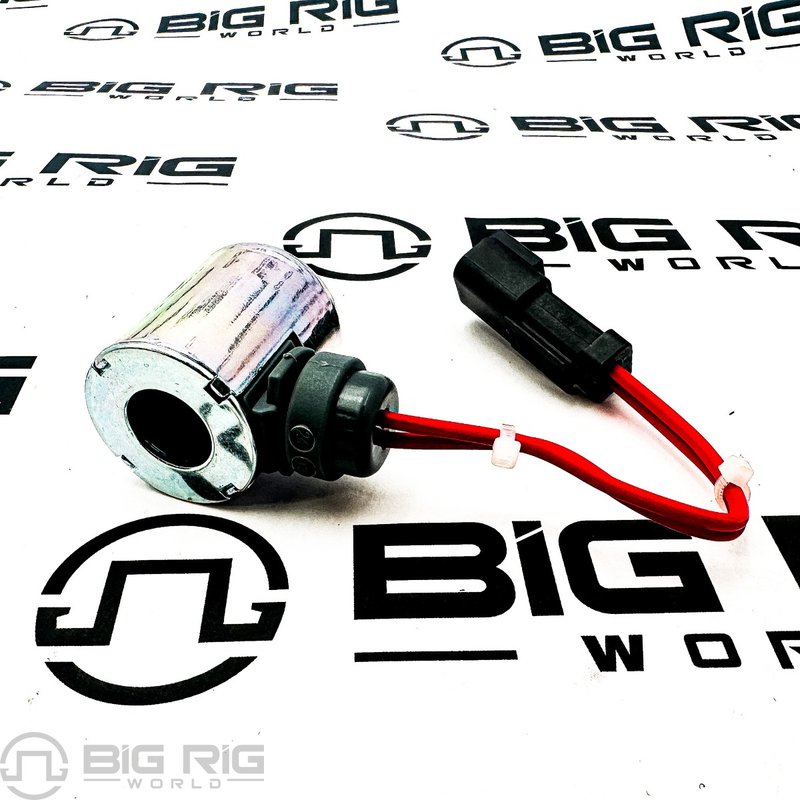

Coil Assembly 326-5214

Description:
Cat coil assemblies are used for application specific service of electronic controlled systems.

Attributes:
• Coil assembly consists of housing, coil, cable straps, receptacle assembly, receptacle lock wedge, connector pins, wave spring, and flux washer
• Material: Molded glass reinforced polyethylene terephthalate plastic (coil)
• Dark gray coil
• 2 pin DT connection
• Nominal resistance ohms: 7.75
• Nominal current amp: 1.55

Application:
Used as needed to service solenoid valves for electronic control of various systems in Cat heavy-duty equipment. Consult your owner's manual or contact your local Cat Dealer for more information.

Specifications:

• Connector Type: 2 Pin DT
• Length (in): 1.71
• Outer Diameter (in): 1.38
• Outside Diameter (mm): 35
• Overall Length (mm): 43.5
• Power (watts): 15.2 (Max)
• Temperature (°C): -40 to 121
• Temperature (°F): -40 to 249.8
• Voltage (VAC): 12
• Wire Length (in): 5.1
• Wire Length (mm): 130
