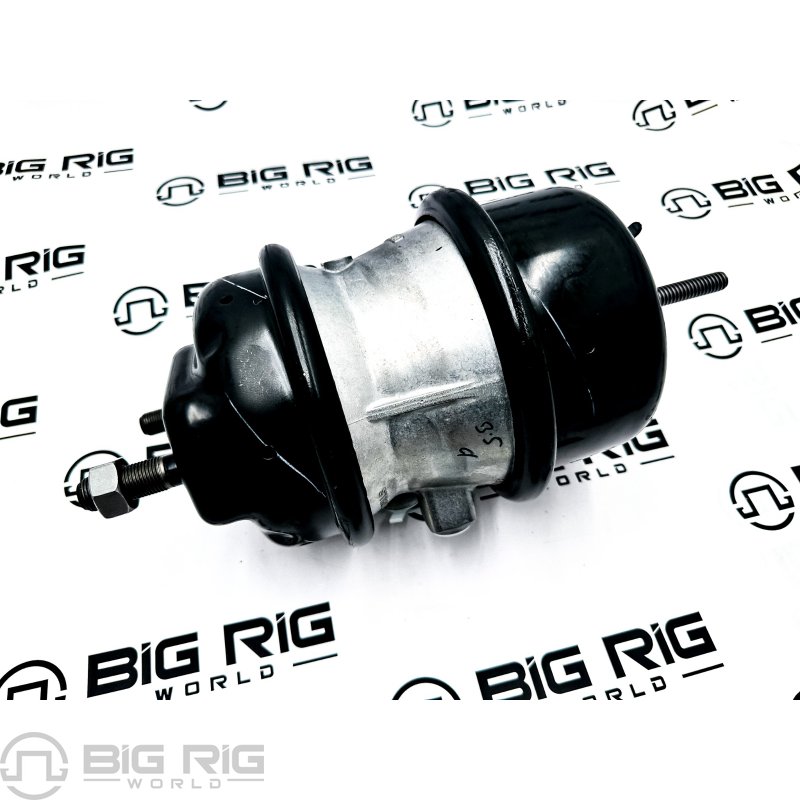

Air Disc Brake Chamber D1824, 090, 270 925-347-027-0

This air disc brake chamber assembly includes both service and spring-brake functions in a dual-diaphragm configuration. Designed for heavy-duty disc brake systems, it converts air pressure into mechanical force to apply or release the brakes. Built to withstand extreme conditions, it supports pressures up to 145 psi and operates within –40 °C to +80 °C range for reliable braking performance in all climates.

• Type: Dual-diaphragm air disc brake chamber
• Model: D1824 090 / 270
• Maximum Working Pressure: 145 psi
• Service Pressure: 116 psi
• Temperature Range: –40 °C to +80 °C
• Stroke: 64 mm minimum (2.52 inches)
• Overall Length: 283.5 mm (11.16 inches)
• Overall Height: 194 mm (7.64 inches)
• Inlet Port Diameter: 11 mm (0.43 inches)
• Confirm compatibility with specific vehicle model before installation
