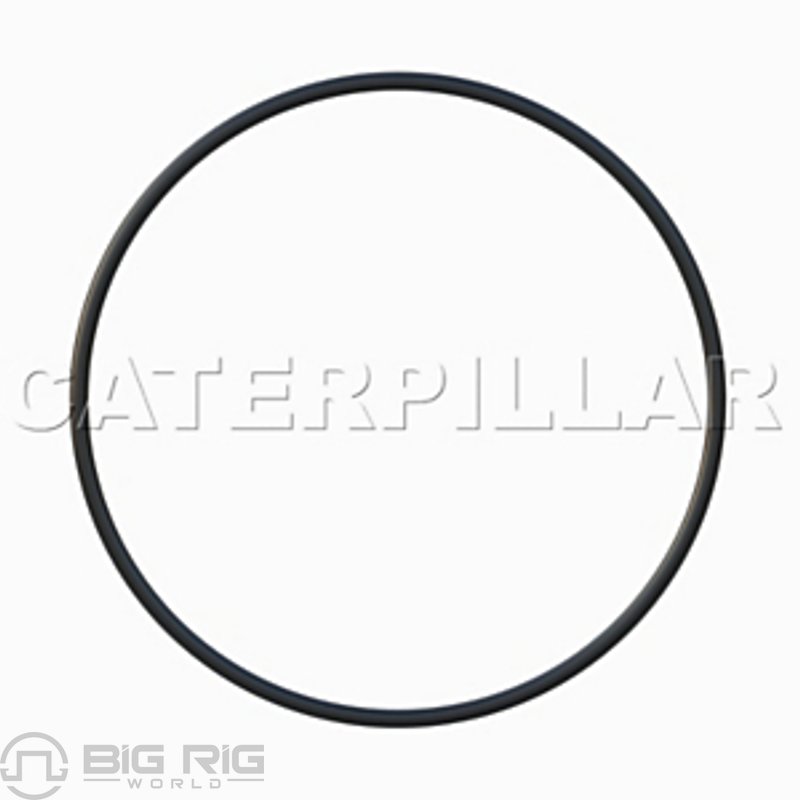

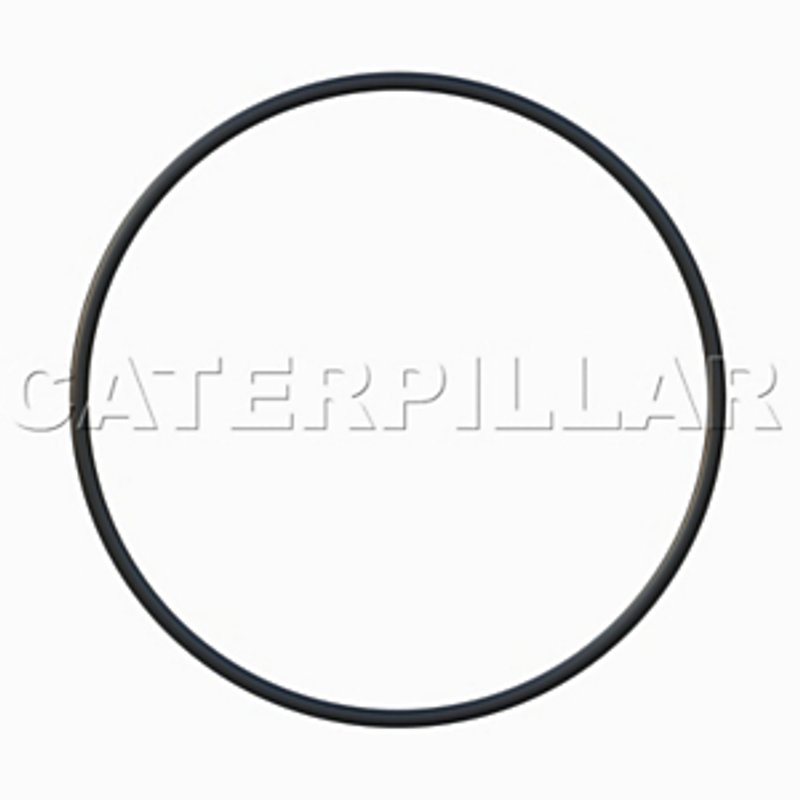

O-Ring

In stock
Part# 1426217 OLD# -

O-Ring

$23.40
Non-returnable part

O-ring

Description:
O-Rings are mainly used in static application as both axial or radial seals to prevent leakage and contamination.

Attributes:
Cat® O-Rings are made from materials that are matched to the fluids, temperatures and pressures found in Cat® engines and machines. The materials resist wear and extrusion, and provide superior resistance to seal compression set. In addition, certain Cat® O-Rings are coated with PTFE to minimize seal twisting and cutting during seal installation.

Dimensions of our O-Rings are consistently held to tight tolerances to ensure they fit properly into seal grooves with the necessary seal compression.

With over 2500 O-Rings in different sizes and materials, Cat® O-Rings are your best solution for your Cat and other mobile equipment O-Ring needs.

Cat® sealing system uses a robust design, testing, and validation process. Buy the latest Genuine Cat seal to protect your investment.

Applications:
O-Rings are used in a wide variety of applications throughout the entire Cat® product line.

Specifications:

  • Applications: High temperature applications requiring resistance to air, fuels, lubricants and hydraulic fluids
  • Coating: PTFE - Polytetrafluoroethylene
  • Compatible With: Diester lubricants; Halogenated hydrocarbons (above 100 Deg. C); Highly resistant to compression set; Petroleum fluids; Phosphate ester fluids; Silicone fluids; Some acids
  • Cross Section Diameter (in): 0.17
  • Inside Diameter (in): 5.52
  • Material: FKM (75), FKM - Fluoroelastomer
  • Material Description: FKM provides superior performance in most applications, including Air, Engine Oil, Diesel Fuel, Hydraulic Oil, Automatic Transmission Fluid and Biodiesel. Most FKM formulations should not be used with Coolant/Urea. FKM is effective in high temperatures, and has good abrasion and cut resistance.
  • Not Compatible With: Amines; Brake fluids; Engine Coolant; Fire Resistant Fluids; Ketones; Steam; Water
  • Notes: Dimensions and Material Descriptions provided for reference only. Color may differ from image.
  • Primary Sealing Material: Rubber
  • Seal/O-Ring Type: Standard
  • Temperature (°F): -40 - 350
 WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov.
More Information
Current Part# 1426217
Manufacturer CAT
Stock In stock
Weight 0.1000
Hot Deals No
Fits CAT
Type OEM
Warranty Standard Manufactures
Compatible Models

EARTHMOVING COMPACTOR
826G II 826C 826K 836 836G 825G II 825G 825H 825K 826H 825C 826G

CHALLENGER
MT835 MT855 MTC865 MTC855 MTC845 MT845 MTC835 MT865

WHEEL-TYPE LOADER
980H 986K 988G 990 II 990 992C 990H 990K 980G 980G II 924G 988B 980C 980F 992D 988F 988F II 980F II 986H

GENERATOR
SR500 SR4 XQP500

ENGINE - GENERATOR SET
3406C C27 C15 G3412 3408B 3406E 3412 3456 C280-16 PM3456 3412C 3406B XQG400 G3406 3408 CG137-12 C18 3408C G3412C PM3412 C32 C9 CG137-08 C13GENSET C15 I6

PETROLEUM PRODUCTS
C280-12 C27 C15 TH48-E70 TH35-E81 CX35-P800 TH48 C-15 TH48-E80 TH35-C15I 3412E CX31-C15I TH35-C15T CX31-P600

ENGINE - TRUCK
C-16 3406C C16 3408 3406B C15 C-15 3406E 3408B C-10

OFF-HIGHWAY TRUCK
770G 770 769D 773D 775G 771D 773B 773G 773F 773E 773G OEM 771C 775G OEM 775F 775G LRC 772B 775D 768C 773G LRC 769C 770G OEM 775B 775E

ENGINE - INDUSTRIAL
3408 3412 3406B 3408C G3412 3412E 3406C SPT342 G3406 G3408 G3616 G3608 3412C C15 C27 SPS342 HT400 3612 G3606 SCT673 G3612 CG137-08 3456 G3408C 3406E CG137-12 3408B G3408B 3406 C280-16 3408E C-15 C-16 G3606B

ARTICULATED DUMP TRUCK
735 735 OEM 740 740B 740 GC D400D D400E D400E II D350E II D400 735C D40D D35HP 735B D350E

ROAD RECLAIMER
RM-350 RR-250 RM500B RM-350B SM-350 RM-500 SS-250B RR-250B RM-250C SS-250

COLD PLANER
PM-565 PR-1000C PR-1000 PR-450C PM-565B PM-465

MOTOR GRADER
16H NA 24 16G 24H

WHEEL DOZER
834G 844H 834B 844 814B 824C 824G II 844K 824G 824K 824H

UNDERGROUND ARTICULATED TRUCK
AD60 AD30 AD55B AD55

EXCAVATOR
385B 365C 374F L 375-A 374D L 374F 375-A L 5110B 5080 5090B 365C L 365C L MH

DRILL
MD6250

PIPELAYER
PL83 578 587T 587R 589 PL87 583T 583R

MARINE PRODUCTS
3608 3616 C280-6 3412 3408C 3412C C280-8 3408B C280-12 3408 3618 3406C C280-16 3406B 3612 C15 3412E 3406E 3606

WHEEL TRACTOR-SCRAPER
621B 637E 627B 627G 657B 631E 627F 631G 623E 651E 657E 621F 637D 621E 627E 637G 623F 639D 657G 621G 623G 633E II 633D 621 657 631D 651B 623B

EXPANDED MINING PRODUCTS
6015B MD6290 6030

TRACK-TYPE TRACTOR
9SU D8R D8N D9R D8T D8L D10N D10T2 D9L D9N D10R D8R II 59N 9U D9T 59L 58L D10T

LOAD, HAUL, DUMP
R2900 R2900G R3000H

Note: Cat® parts shipped within the United States only.
