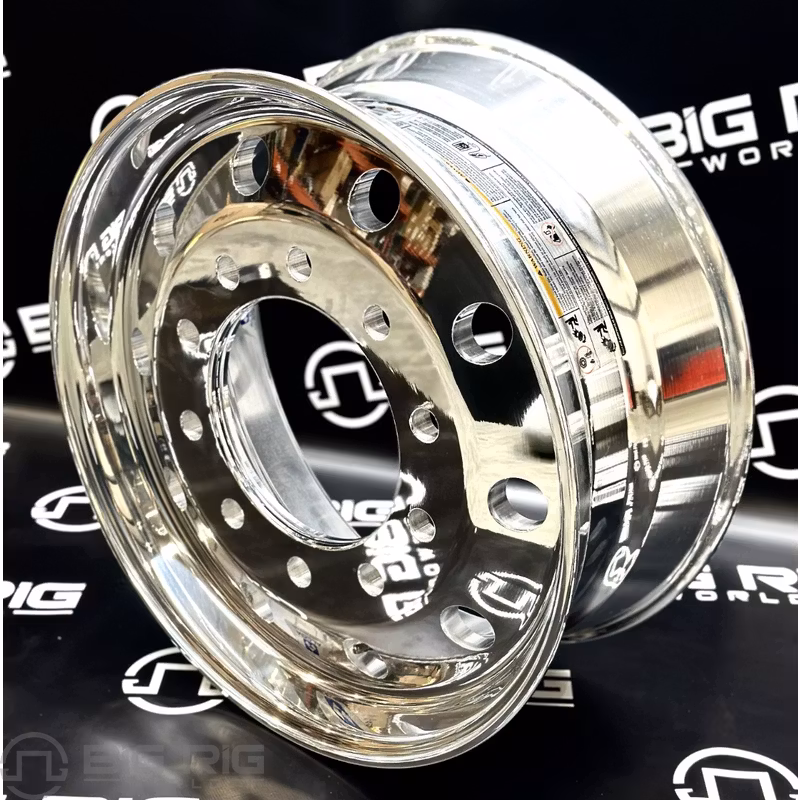

22.5 x 9.00 Alcoa Aluminum Wheel - Mirror Polish Outside Only 89U631

Name: 22.5 x 9.00 Alcoa Aluminum Wheel - Mirror Polish Outside Only 89U631
Brand: Alcoa
SKU: 89U631
Price: 405.81 USD
Availability: InStock

Alcoa

Part# 89U631

OLD# 893651

In Stock

22.5 x 9.00 Alcoa Aluminum Wheel - Mirror Polish Outside Only 89U631 - Alcoa

Alcoa Aluminum Wheel with Mirror Polish (Outside Only)

Package discount applied. Your savings:

Have a Question?

Live Chat or Contact us

Description

Alcoa Aluminum Wheel with Mirror Polish (Outside Only)

Leveraging the exclusive MagnaForce® alloy, this wheel achieves over 50 lbs. in weight savings compared to a comparable steel wheel, enhancing productivity with a best-in-class load rating.

Part Details:

Wheel Size: 22.5 x 9 inches
Bolt Holes: 10
Mounting: Hub-Pilot
Approximate Weight: 48lbs
Valve Stem: TR555E

Optional Add-Ons (Not Included):

076185 - Front Hub Cover System
077185 - Rear Hub Cover System
076185-077185K1T - Front and Single Rear Axle Kit
076185-077185K2T - Front and Dual Rear Axle Kit

Check Out All Of Our Alcoa Wheels!

Shipping Info

Next Day Air services are available for In Stock items. Our shipping cutoff time is Monday - Friday 4:30pm Eastern Standard Time (EST).

For more shipping information, please see our Shipping & Delivery page.

More Information

Current Part#	89U631
Old Part No.:	893651, 893631
Manufacturer	Alcoa
Fits	Various Makes
Finish	Polished Outside Only
Wheel Mounting	Hub Pilot
Bolt Circle Diameter	285.75mm
Hub Bore Diameter	220.1mm
Bolt Hole Diameter	26mm
Outset	N/A
Inset	3.12 in
Max. Inflation - Cold	130 psi
Warranty	5-Year
