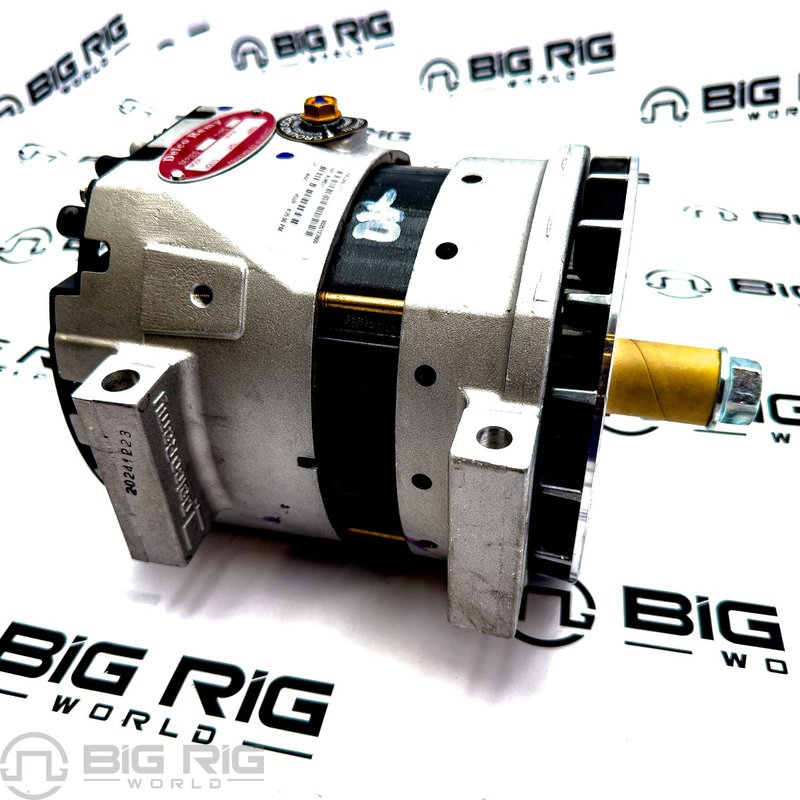

Alternator 40SI 300amp Pad Mount 8600298

This brushless alternator is designed for high-output, heavy-duty applications. It delivers up to 300 amps at 12 volts and mounts using a standard pad configuration. The unit features an internal regulator, remote sense terminal, and clockwise rotation for optimized electrical performance.

• Model: 40SI
• System Voltage: 12 V
• Ampere Rating: 300 A
• Mount Type: Pad
• Rotation Direction: Clockwise
• Brushless: Yes
• Regulator Type: Internal
• Remote Sense Terminal: Yes
• Ground Terminal: Negative
• Terminal Quantity: 5
• Terminal Type: B+ Output (5/16 inch), I and R (both #10)
• Case Material: Aluminum
• Fan Type: External
• Pulley Included: No
• Length: 9.92 inches
• Distance Between Mounting Holes: 5 inches
• Stator Diameter: 5.98 inches
• Maximum Speed: 8000–10000 RPM
