Price $626.59

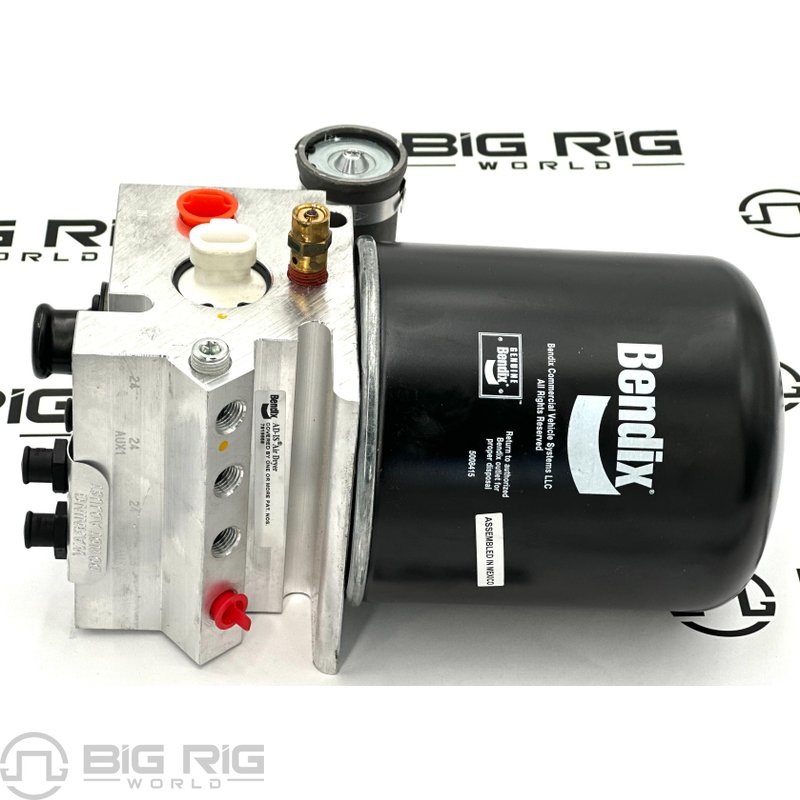

Air Dryer AD - IS
Description
Air Dryer AD - IS
Part Details:
- Air Dryer Type: Stand-Alone
- Mounting: Mount to Purge Reservoir (Not Included)
- Supply Port: 1/2-14 NPT
- Governor Unloader Port: 1/8-27 NPT
- Governor Reservoir Port: 1/8-27 NPT (Plugged)
- PRI Delivery Port 21: 1/4-18 NPT
- PRI Delivery Opening Pressure: 103 PSI
- SEC Delivery Port 22: 1/4-18 NPT
- SEC Delivery Opening Pressure: 109 PSI
- AUX 1 Delivery Port 1: 1/4-18 NPT (Plugged)
- AUX 1 Delivery Port 2: 1/4-18 NPT
- AUX 1 Delivery Port 3: 1/4-18 NPT
- AUX 1 Delivery Port 4: 1/4-18 NPT
- AUX 1 Delivery Opening Pressure: 109 PSI
- AUX 2 Delivery Port: 1/4-18 NPT
- AUX 2 Delivery Opening Pressure: 109 PSI
- Purge Exhaust Port: Standard
- Purge Valve Type: Hard Seat
- Safety Valve Opening Pressure: 153 PSI
- Heater / Thermostat Rating: 12V / 90W
- Heater Connector Type: Metri-Pack 280 Series 2-Way Sealed Connector (Male)
- Heater Connector Color: White
- Cartridge Type: Standard
- Cartridge Thread: M39 x 1.5-6H RH
- Clearance to Remove Cartridge: 1.00in
- Governor Included: Yes
- Governor Type: Non-Adjustable
- Cut-in Pressure: 110 PSI
- Cut-out Pressure: 130 PSI
- Pressure Protection Valve Configuration: 4 in Parallel
- Maximum Inlet Temperature: 160 °F (71 °C)
- Minimum Operating Temperature: -40 °F (-40 °C)
- Alert: Pressure protection valve configs are not interchangeable
Check Out All Of Our Air Dryer Components!
Shipping Info
Commercial Address Preferred
(Residential may not be available or have additional fees.)
Please note, next day services are only available for In-Stock items. If an order ships on a pallet with an LTL Freight Service, the shipping quotes are based on commercial addresses only. If you require delivery to a residential address or farm, please contact us. For more shipping information, please see our Shipping & Delivery page.
Product details
Current Part# | 801266 |
---|---|
Old Part No.: | 5010696BXR, 801266BXW |
Manufacturer | Bendix |
Stock | In Stock |
Hot Deals | No |
Fits | All-Makes |
Type | Aftermarket |
Warranty | Standard Manufactures |
