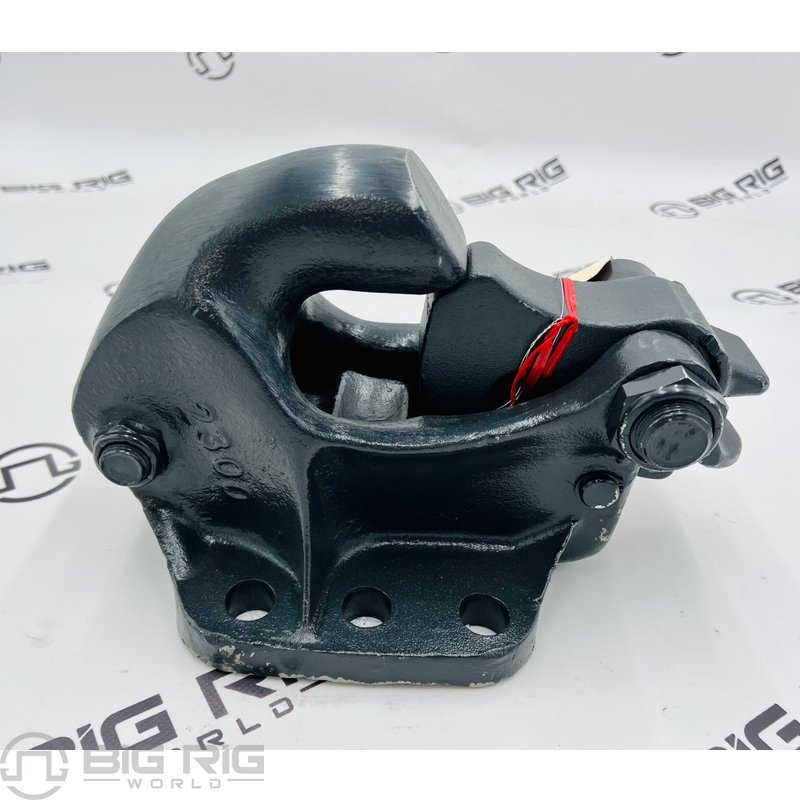

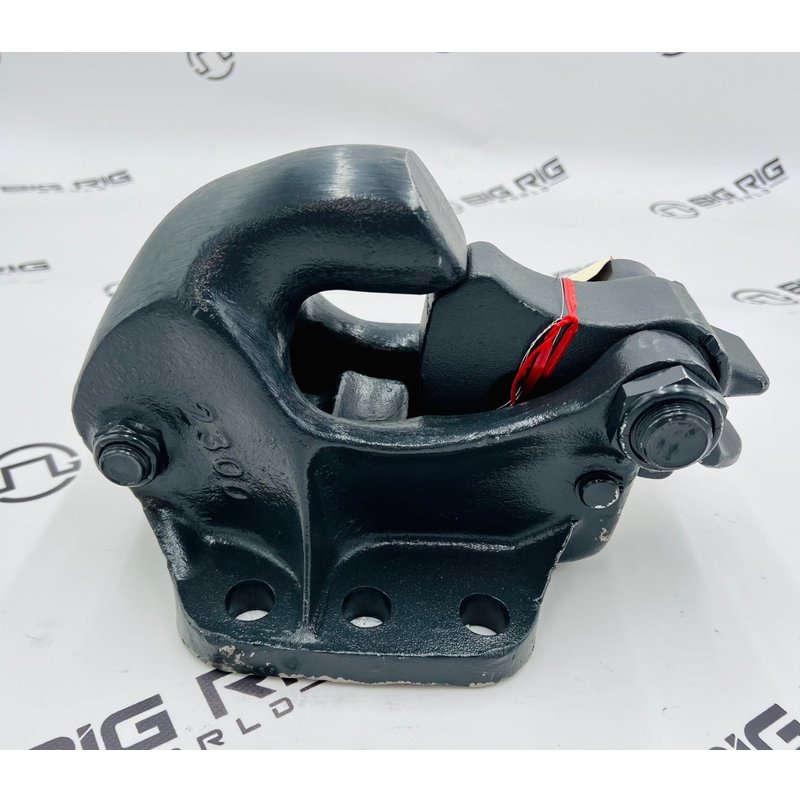

Air Coupling,2300,PREMALLOY,271 10004704

- Big Rig World carries Genuine OEM and Aftermarket parts to repair your vehicle at the lowest prices.

Popular with tanker fleet customers, the 10004704 slack reducing coupling can be used throughout the industry. Like our 10004688 model, the 10004704 is also made from Permalloy for long life. As with all 2000 series couplings, the 10004704 offers unsurpassed latch strength and can be operated with or without an air service chamber. Each coupling has a maximum gross trailer weight of 100,000 lbs. and 60,000 latch capacity for heavy-duty applications.

SPECIFICATIONS
Maximum Gross Trailer Weight      100,000 lbs (45,359 kg)
Maximum Tongue Weight               20,000 lbs. (9,072 kg)
Ultimate Latch Capacity                   60,000 lbs. (27,216 kg)
Maximum Eye X-Section                  1 13/16 in. (46 mm)
Minimum Eye Opening                    2 3/8 in. (60 mm)
Unit Weight                                        30.3 lbs. (13.7 kg)
