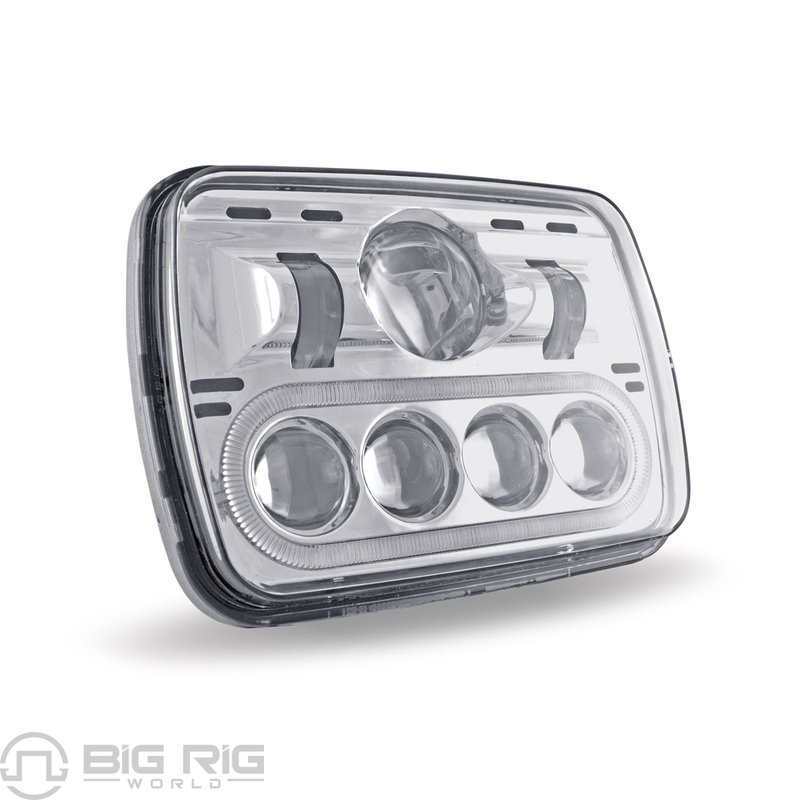

5 x 7 In. LED Projector Headlight (Combination High & Low Beam | 2600 Lumens) TLED-H4

5 x 7 In.  LED Projector Headlight (Combination High & Low Beam | 2600 Lumens)

- Big Rig World carries Genuine OEM and Aftermarket parts to repair your vehicle at the lowest prices.

FEATURES:

• DOT Compliant
• Combination High & Low Beam
• Meets FMVSS-108 & CMVSS-108 Standards
• LED Projector Technology for Greater Visibility
• Eye-Catching Auxiliary Halo Oblong
• Super Bright Low Beam with 700 Effective Lumens
• Standard H4 Connector for Easy Installation
• Retrofit: 6052, 6053, H6054, HD6054, HP6054
• Sold Individually
• 7 Year Warranty

• Sold Individually
• Designed to Fit Driver / Passenger Side
• Compliance DOT Compliant
• Bulb Type LED Projector
• Function High & Low Beam
• Function 2 Auxiliary Halo Oblong
• Color Chrome
• Beam Combination High & Low Beam
• LED Power Low: 9 Watts | High: 15 Watts
• Raw Lumens Low: 1890 Lumens | High: 2600 Lumens
• Effective Lumens Low: 700 Lumens | High: 800 Lumens
• Diodes 7 Diodes
• Operating Voltage (V) 9-24 Volts (DRL Compatible)
• High Beam (Volts / Amps) 1.2 Amps @ 12 Volts
• Low Beam (Volts / Amps) 0.7 Amps @ 12 Volts
• Color Temperature 6800K
• Lens Material Polycarbonate
• Housing Material Aluminum Die Cast
• Waterproof Rating IP67 Rating
• Dimension (L x W x H) 7.88" x 3.69" x 5.56"
• Package Dimensions (W" x L" x H") 8.5" x 4.5" x 6.5"
• Inner Box QTY 1 PC
• Warranty 7 Year Warranty
